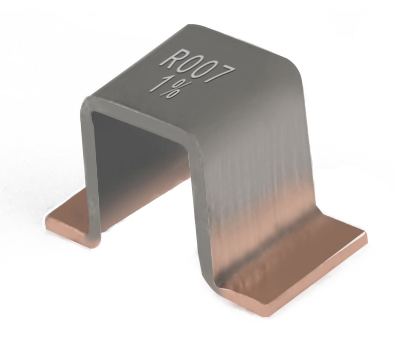

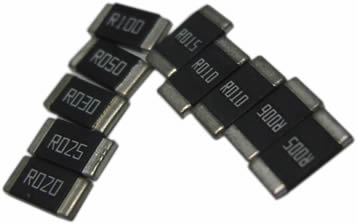

Alloy Shunt chip Resistors type J

Tolerance ±5%, ±2%, ±1% and ±0.5%
Operating Temperature range
-65°C~170°C
Electron beam welding
Ideal for pulse application
Low Inductance < 3nH
RoHS Compliant
Customizable

Frequency conversion drive, servo drive system
High current battery management system
Automobile electronic control unit,
automobile oil pump drive
DC/DC, DC/AC power modules
Automatic control system
Industrial instrument and equipment

• Element Material:

• K: Karma

• F: FeCrAl

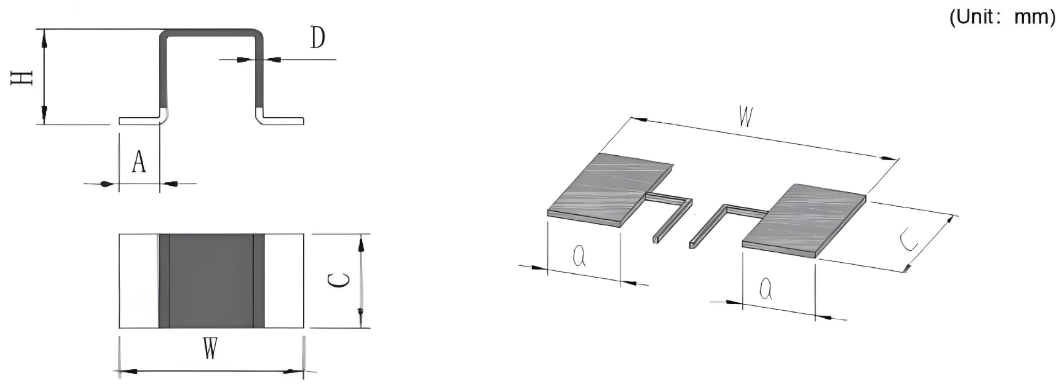

• Dimension:

• 3920

• 5930

• Resistance Value (mΩ):

• -5

• Tolerance:

• J: ±5%

• G: ±2%

• F: ±1%

• D: ±0.5%

Standard measuring conditions

Temperature 20±2°C, Humidity 65±5%. Being no doubt about the judgment, measurements can be made within the following Temperature 5~35°C, Humidity 45~85%.

TCR (ppm/°C) : Test conditions at 20°C~120°C.

Endurance test
