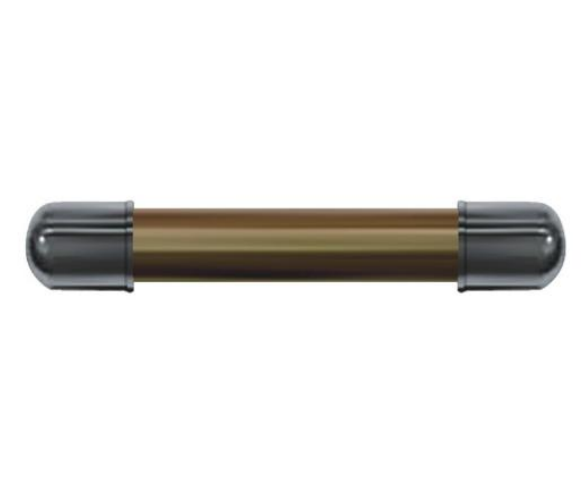

RX92 anti - interference wire - wound resistors

Features
High resistance value
High reliability
Applications
Mostly used in automobile ignition devices

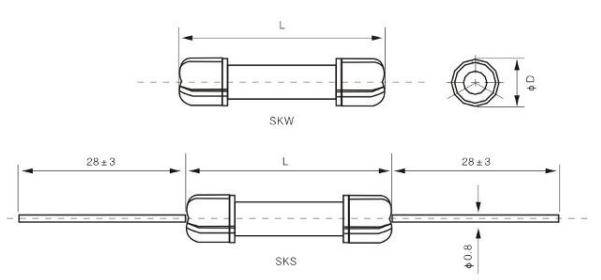

Dimensions(mm)
| Type | L | ϕD |
|---|---|---|
| RX92 - 1 | 16 ± 0.1 | 3.75 ± 0.1 |
| RX92 - 2 | 17.45 ± 0.1 (17<sup>+0.5</sup><sub>0.2</sub>) | 3.75 ± 0.1 |
| RX92 - 3 | 22 ± 0.1 | 4.5 ± 0.1 |
| RX92 - 4 | 28 ± 0.1 | 4 ± 0.1 |
Leadless style or Leaded style
Technical Specifications
| Type | Rated Power (W) | Resistance Range | Tolerance | TRC (10⁻⁶/K) |
|---|---|---|---|---|
| RX92 - 1 | 1.0 | 1KΩ~5KΩ | ± 10% | 250 |
| RX92 - 2 | 2.0 | |||
| RX92 - 3 | 3.0 | |||
| RX92 - 4 | 4.0 |
Performance
| Test Item | Specifications | Test Methods |
|---|---|---|
| Short time overload | ΔR≤ ±(1%R + 0.05Ω) | 10Pₙ, 5S |
| Load life | ΔR≤ ±(5%R + 0.1Ω) | 70°C, Pₙ, 1000h |
| Terminal tensile strength | ΔR≤ ±(1%R + 0.05Ω) | 5kg, 30S |
WHATSAPP
LINE
WECHAT
SKYPE
In addition to RX92 anti - interference wire - wound resistors, we also focus on the following resistors:
-
RX92 anti - interference wire - wound resistors
-
Anti-Surge Wire Wound Resistors
-
Anti-Surge Wire Wound MELF Resistors
-
Anti-Surge Wire Wound MELF Resistors-Xseries
-
Anti-Surge Wire Wound Fast-Fuse Resistors
-
Anti-Surge Wire Wound Fast-Fuse MELF Resistors
-
Automotive Grade/Vehicle Grade Anti-Surge Wire Wound MELF Resistors
-

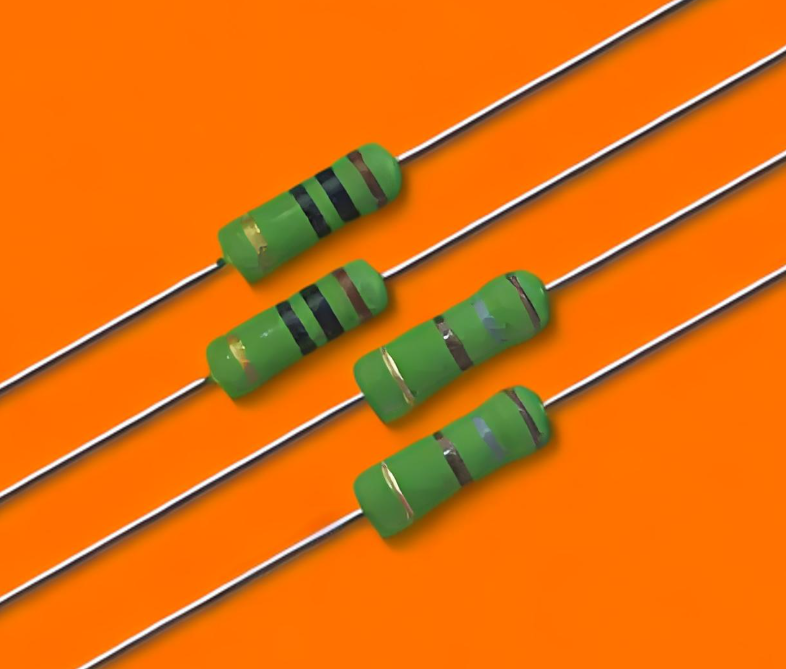

Wire Wound Resistors
-

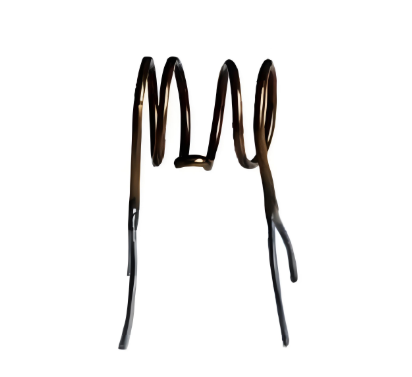

TYRX79 precision wire - wound resistors
-

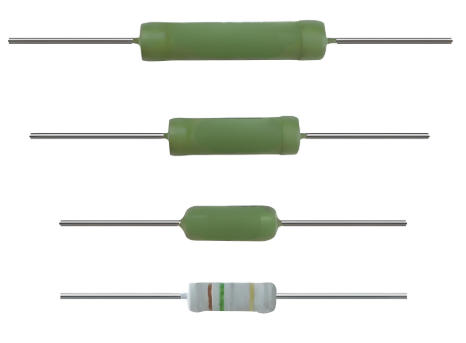

RX21 coated wire - wound resistors
-

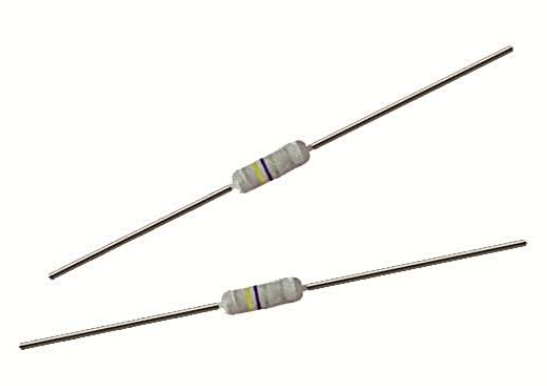

RXF21A/B/C (FRT) wire - wound fusing resistors
-
TYRX10 low - resistance - value precision wire - wound resistors
-
RXL power aluminum encased wire - wound resistors
-

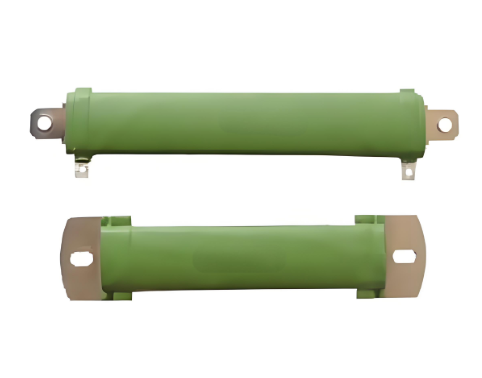

RXBRXB1 Flat coated wire - wound resistors
-

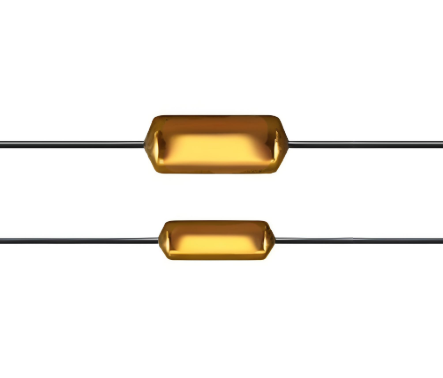

TYRX71 series precision wire - wound resistors
-

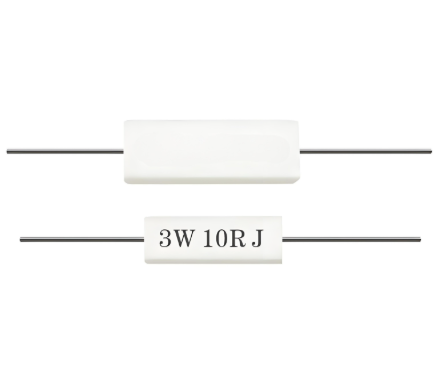

RX23 ceramic encased wire - wound resistors
-

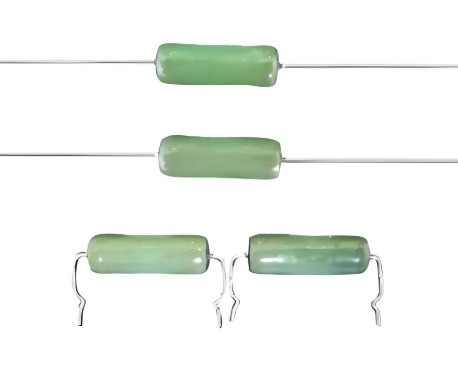

RX22 Vitreous enameled wire - wound resistors
-

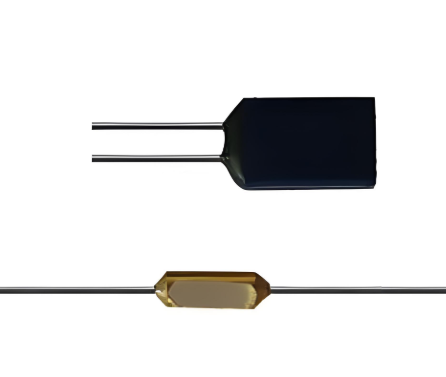

TYRX75 small - size precision wire - wound resistors
-
RSC molded - type surface - mount wire - wound resistors
-

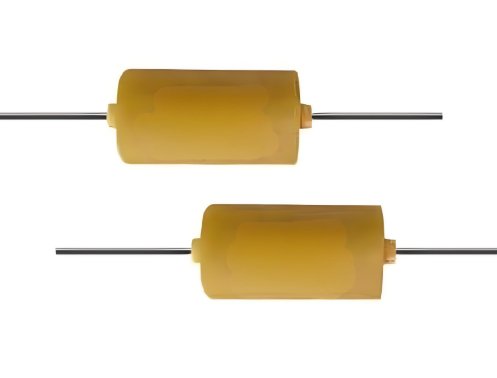

TYRX78 high - resistance - value precision wire - wound resistors
-

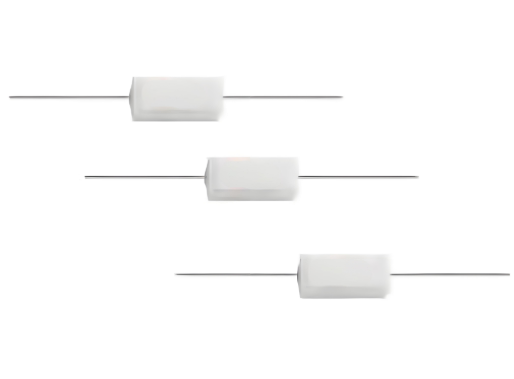

RX27 power ceramic encased wire - wound resistors
-

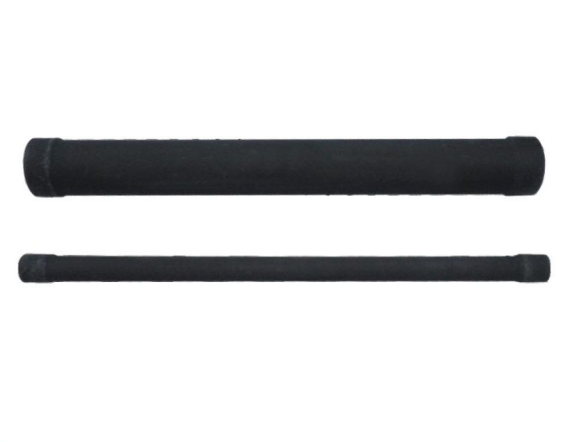

RXGM high power coated wire - wound resistors
-

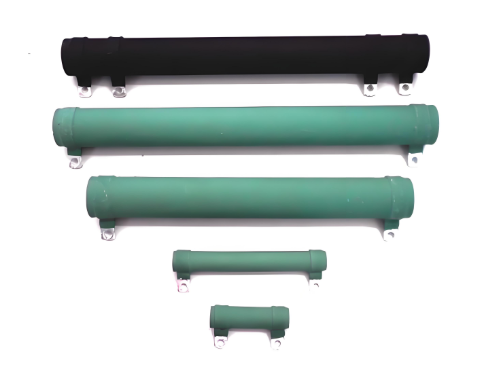

RXGI high power coated wire - wound resistors
-

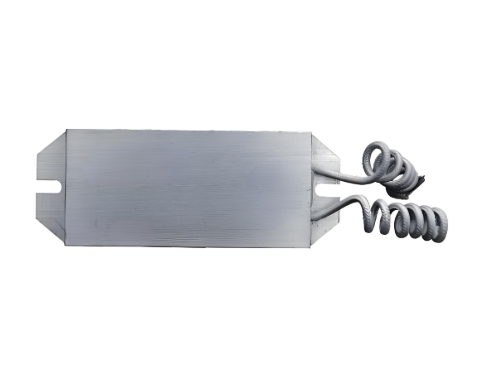

RXLB power aluminum encased wire - wound resistors
