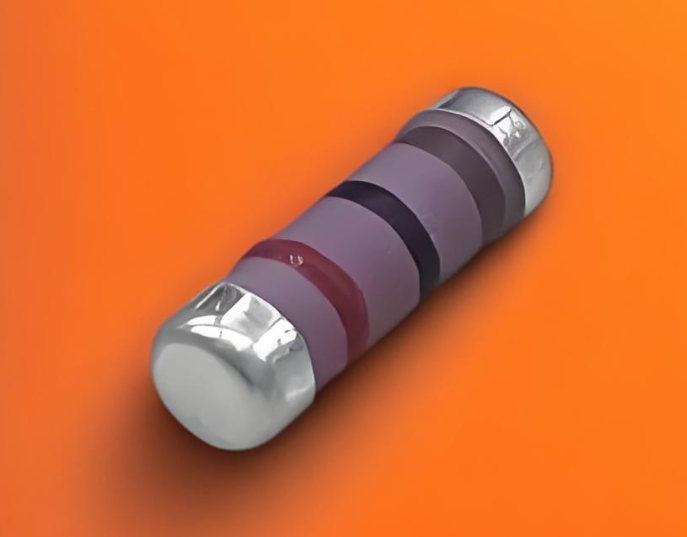

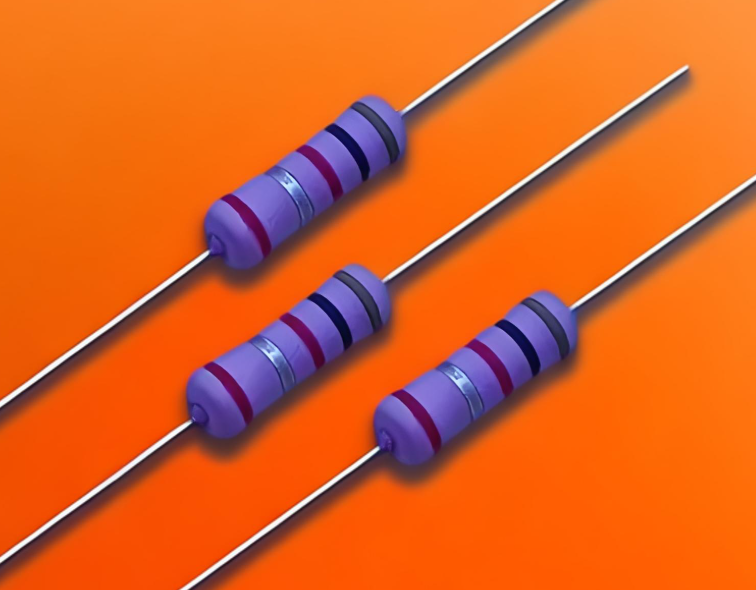

Composite Film Type Ceramic Composition Resistor

The ceramic composition resistor, with a stable power rating of 1W and a resistance range spanning from 33 ohms to 22K ohms, is designed to meet the diverse needs of different circuits. This resistor is renowned for its excellent pulse withstand characteristics, capable of enduring high-energy pulse currents over short periods without damage. The tolerance range is precisely controlled within ±5%~±20%, ensuring circuit stability and accuracy. It is designed as a superior and more cost-effective alternative to the widely used KOA ceramic resistor.

After rigorous testing, this resistor has demonstrated outstanding durability. It can successfully withstand the defibrillation pulse tests specified in the AAMI EC53/IEC 60601-2-27 standards, which simulate the extreme electrical conditions that medical devices may encounter during defibrillation. Therefore, this resistor is highly suitable for use in medical equipment, such as ECG cables, that require high reliability and stability. Additionally, due to its exceptional high-voltage tolerance, this resistor can also be used in other high-voltage circuits, such as X-ray generators and electron microscopes, among other precision scientific instruments.

• Indicates that the temperature coefficient values may vary depending on specific conditions.
