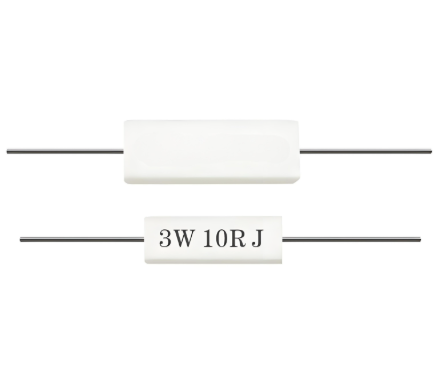

RX23 ceramic encased wire - wound resistors

Features

Moisture - proof, good heat - resistant
Perfect insulation
Wide working temperature range

Applications

Applied in electrical instruments and equipments, such as Colour TV, audio, charger etc

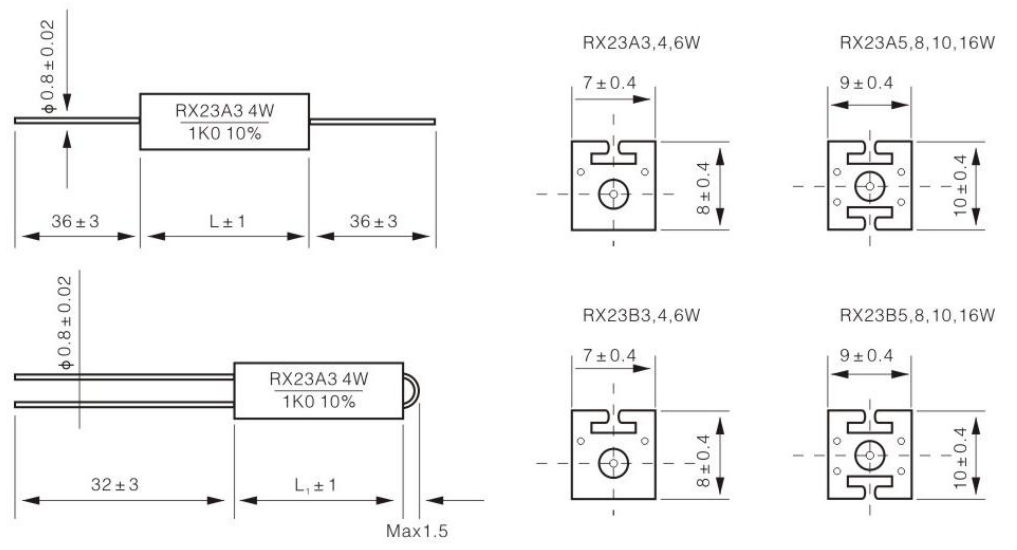

Technical Specifications

Type	Rated Power (W)	Dimensions (mm) (L₁)	Resistance Range (Min)	Resistance Range (Max)	Tolerance	Temperature Coefficient (10⁻⁶/°C)
RX23 - A,B - 3	3.0	20	R10	1K5	rowspan="7">± 5% ± 10%	rowspan="7">500×10⁻⁶/°C
RX23 - A,B - 4	4.0	25	R10	2K2
RX23 - A,B - 6	6.0	38	R22	3K9
RX23 - A,B - 7	7.0	25	R10	2K2
RX23 - A,B - 9	9.0	38	R33	3K9
RX23 - A,B - 11	11.0	50	1R0	5K6
RX23 - A,B - 17	17.0	75	1R0	10K

Performance

Test Item	Specifications	Test Methods
Solderability	Wetted and free - flowing solder leads, >95% of the soldered area on the leads	235°C ± 5°C, 2s ± 0.5s
Short - term overload	ΔR≤ ± ( 1%R ± 0.05Ω )	√10RP 5s
Lead end strength	No visible loss in appearance, ΔR≤ ± ( 1%R ± 0.05Ω )	Tension, bending, twisting, 180 degrees 2 times
Resistance to soldering heat	No visible loss in appearance, ΔR≤ ± ( 1%R ± 0.05Ω )	260°C ± 5°C 10s ± 0.5s
Temperature Coefficient	±500ppm/°C	GB/T 5729 - 2003 Article 4.8
Reduced Power Consumption	When the ambient temperature rises from 70°C to 275°C, the permissible load of the resistor decreases from 100% to 0% of the rated power	-
Long term life	ΔR≤ ± ( 5%R ± 0.1Ω ), Insulation Resistance ≥1GΩ	1000h, 1.5h energized, 0.5h de - energized
Surface Temperature Rise	≤210°C	Apply rated voltage to achieve thermal stability

Measurement of Precised Resistors

Testing environment: 25 ± 2°C, relative humidity: 60%RH.
Precision of test apparatus should be 2 classes higher than resistors tested. For example, if precision of resistor tested is 0.1%, the precision for testing apparatus will be required at 0.02%.
Keep an eye on the standards of testing fixture when high - resistance is tested. Good insulation, screening and grounding should be equipped with.
For low - resistance testing, 4 - terminals - measurement is indispensable.
When resistors are being formed or fixed, the root of leads should not be stressed. Welding temperature below: 260°C, less than 3 seconds.
