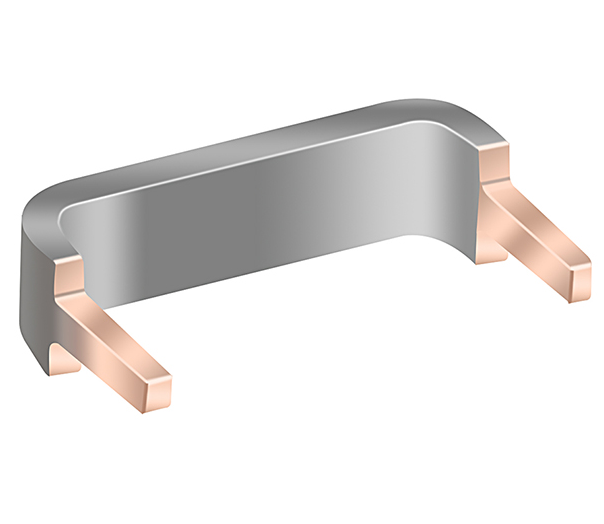

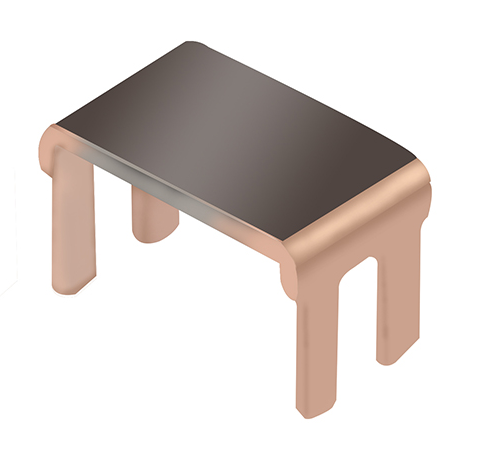

n-type shunt plug-in resistor

Features

Tolerance ±5% ±2% and ±1%
Operating Temperature range -65°C~170°C
Electron beam welding
Ideal for pulse application
RoHS Compliant
Customizable
AEC-Q200 qualified

Applications

Frequency conversion drive, servo drive system
High current battery management system
Automobile electronic control unit, automobile oil pump drive
DC/DC, DC/AC power modules
Automatic control system
Industrial instrument and equipment

Information	Details
Temperature	20±2°C
Humidity	65±5%
Measurement Temperature Range	5~35°C
Measurement Humidity Range	45~85%

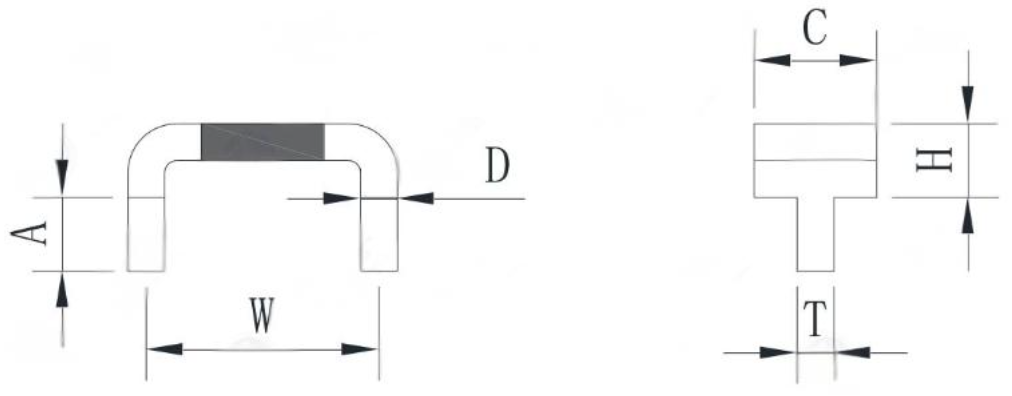

Parameter	Range (mm)
Resistance (mΩ)	0.5~20
W	5~30
H	3~30
T	0.8~1.5
C	2~15
A	3.0~5
D	0.3-1.5

Type	Detail
Resistance(Unit: mΩ)	0.5~20
Tolerance	±1%、±2%、±5%
Operating temperature range	-65°C to +170°C
Power P70°C(Unit: W)	1~7
Temperature coefficient (Unit: ppm/°C)	±20 ~ ±100
Material	M: Manganin F: FeCrAl K: Karma

Items	Additional Requirements	Reference	Limits
Temperature Cycling	1000 Cycles(-55°C to +125°C)	JESD22 Method JA-104	±0.5%
High Temperature Exposure	100hrs.@T = 170°C.Unpowered.	MIL-STD-202 Method 108	±0.5%
Biased Humidity	1000hrs 85°C/85%RH. Note:Specified conditions:10% of operating power.	MIL-STD-202 Method 103	±0.5%
Operational Life	Condition D Steady State TA = 125°C at rated power.	MIL-STD-202 Method 108	±0.5%
Solderability	245°C±5°C,5s±0.5s	MIL-STD-202 Method 208H	95% Coverage Minimum
Resistance to Soldering Heat	260°C±5°C, 10s±1s	MIL-STD-202 Method 210	±0.5%
Short Time Overload	5×Rated power for 5 s	MIL-STD-202 Method 301	±0.5%
