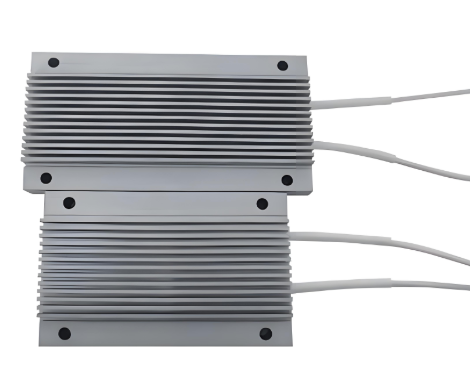

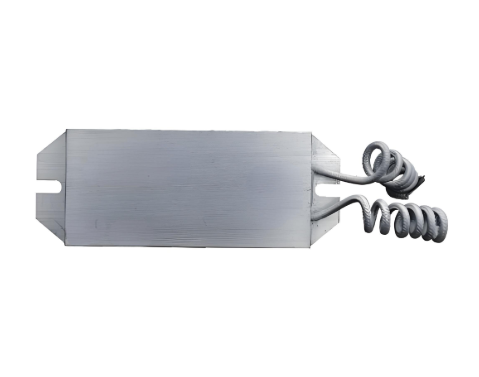

RXLB - M Power type aluminum shell wire wound resistor

Features

Vibration resistance
Moisture proof
Easy to attach radiator
Ease of installation

Applications

Transducer
Power supply and other harsh industrial control environment

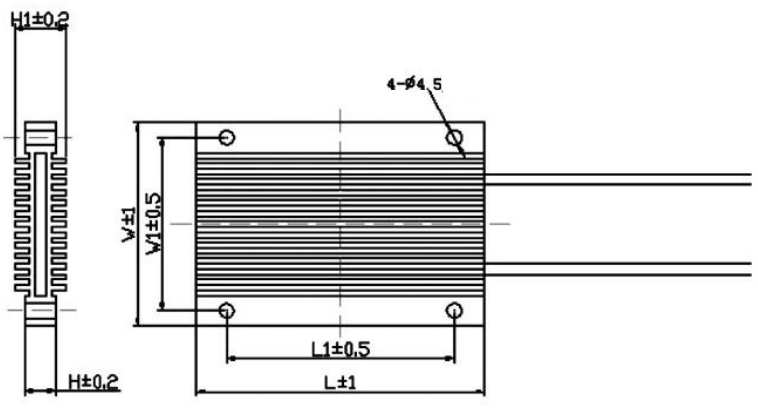

Dimensions (mm)

Power	L±1	L1±0.5	W±1	W1±1	H±0.2	H1±0.2
60W	95	75	60	50	12	19
80W	115	95	60	50	12	19

Performance

Characteristics	Specifications	Test Methods
Short - term overload	△R ≤ ±(2%R + 0.05Ω)	√5PR for 5s
Withstanding Voltage	No mechanical damage, No breakdown flying arc	1000Vac, 1mA, 60s ± 5s
Insulation resistance	≥100MΩ	Measuring Voltage: 500 ± 50V
TCR	±260(10⁻⁶/K)	GB/T 5729 - 2003 Article 4.8
Reduce Power Loss	When the ambient temperature rises from 25°C to 275°C, the allowable load of the resistor is reduced from 100% of the rated power to 0%	-
long term life	△R ≤ ±(5%R + 0.1Ω)	1000h, 1.5h energized, 0.5h de - energized
surface temperature rise	≤250°C	GB/T 5729 - 2003 Article 4.14 rated power to achieve thermal equilibrium
