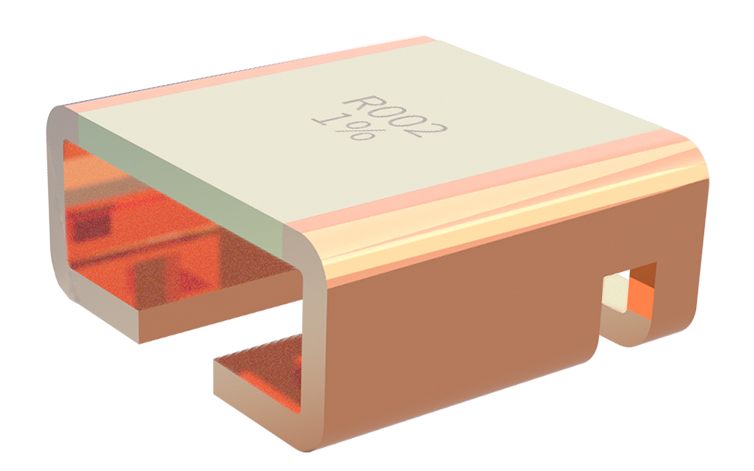

Customizable Low-Inductance Four-Terminal Shunt Resistors

Feature	Details
Tolerance	±5%, ±2%, ±1%, and ±0.5%
Operating Temperature Range	-65°C to 170°C
Structure	Electron beam welding
Pulse Application	Ideal for pulse application
Inductance	<3 nH
Temperature Coefficient (TCR)	±50, ±75 ppm/°C
Compliance	RoHS Compliant, AEC-Q200 qualified
Customization	Special specifications can be customized
Applications	Frequency conversion drive servo drive system, High current battery management system, Automobile electronic control unit, Automobile oil pump drive, DC/DC, DC/AC power modules, Automatic control system, Industrial instrument and equipment

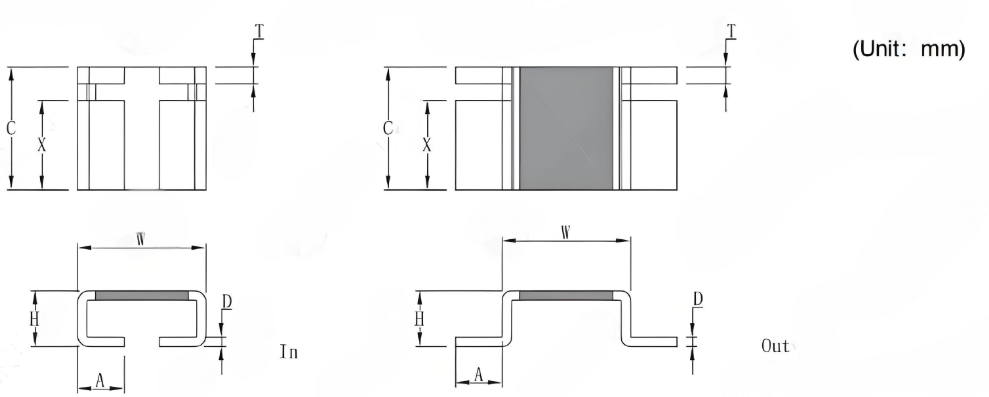

Size	W (mm)	A (mm)	C (mm)	X (mm)	T (mm)	H (mm)	Tolerance (mΩ)
In	6.9±0.3	2.5±0.2	6.6±0.3	4.8±0.4	0.9±0.1	3±0.5	0.2-5
Out	6.9±0.3	2.5±0.2	6.6±0.3	4.8±0.4	0.9±0.1	3±0.5	0.2-5

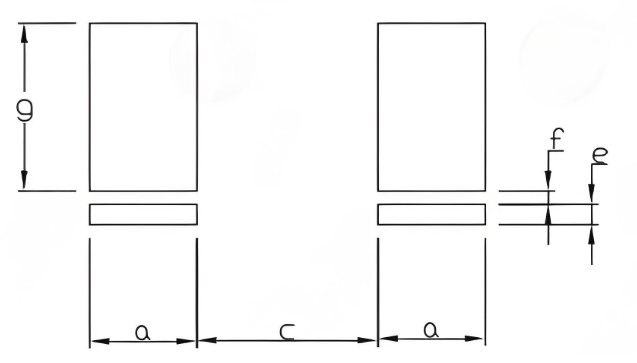

Solder Pad Type	a	c	e	f	g
In	2.9	2	0.9	0.8	5.6
Out	4	5.5	0.9	0.8	5.6

Size	Element Material	Resistance (mΩ)	Rthi (°C/W)	D±0.1 (mm)	TCR (ppm/°C)	P70°C (W)
Out	M	0.2	3	1.05	±75	5
		0.3	4	1.06	±75	10
		0.5	6	0.67	±75	8
		0.7	8	0.48	±75	7
		1	13	0.33	±75	6
	K	1.5	13	0.67	±50	5
		2	16	0.47	±50	5
		3	19	0.34	±50	5
		4	0.4	±50	4
		5	0.4	±50	3

Size	Element Material	Resistance (mΩ)	Rthi (°C/W)	D±0.1 (mm)	TCR (ppm/°C)	P70°C (W)
In	M	0.3	4	0.40	±75	10
		0.5	5	0.67	±75	8
		1	10	0.33	±75	6
	K	2	14	0.50	±50	5
		3	19	0.34	±50	5
		4	0.4	±50	4
		5	0.4	±50	3

Endurance Test	Additional Requirements	Reference	Limits
Temperature Cycling	1000 Cycles (-55°C to +125°C)	JESD22 Method JA-104	±0.5%
High Temperature Exposure	100 hrs @ T=170°C, Unpowered	MIL-STD-202 Method 108	±0.5%
Biased Humidity	1000 hrs @ 85°C/85% RH, 10% of operating power	MIL-STD-202 Method 103	±0.5%
Operational Life	Condition D Steady State TA=125°C at rated power	MIL-STD-202 Method 108	±0.5%
Solderability	245°C ±5°C, 5s ±0.5s, 95% Coverage Minimum	J-STD-002C

Items	Additional Requirements	Reference	Limits
Vibration	5 g's for 20 min, 12 cycles each of 3 orientations. Use 8X5 PCB, 0.031 thick, 7 secure points on one long side and 2 secure points at corners. Test from 10-2000 Hz.	MIL-STD-202 Method 204	0.5%
Resistance to Soldering Heat	260°C ±5°C, 10s ±1s	MIL-STD-202 Method 210	0.5%
Short Time Overload	5x Rated power for 5s	MIL-STD-202 Method 301	0.5%
Mechanical Shock	Pulse waveform: Half-Sine pulse. Accelerate peak: 100g. Pulse duration: 6ms. Orientation & Shock time: ±X, ±Y, ±Z; 3 times each orientation, total 18 times.	MIL-STD-202H Method 213	0.5%
ESD	Direct Contact (DC): ±6kV; Air Discharge (AD): ±12kV, ±16kV, ±25kV.	AEC-Q200-002 REV-B	0.5%
Board Flex	PCB board size (HxWxT): 100mm × 40mm × 1.6mm. Press tool r=340mm, Width=20mm. Deformation displacement: 2mm. Duration: 60+5s.	AEC-Q200-005 REV-A	0.5%
Terminal Strength	Press tool: A pointed thruster with a radius of 0.5 mm. Shear force: 17.7N. Duration: 60+1 seconds.	AEC-Q200-006 REV-A	0.5%
Flame Retardance	Test current: 100%, 115%, 130%, 150% rated current. Test duration: 1h. Failure: Flame over 3.0 seconds, explosion, temperature above 350°C sustained for over 10 seconds.	AEC-Q200-001 REV-B	0.5%
Resistance to Solvents	Solvent a: 1 part isopropyl alcohol reagent grade and 3 parts mixture of 80% kerosene and 20% ethylbenzene. Solvent c: 9 parts D-limonene and 1 part surfactant. Solvent d: 42 parts water, 1 part propylene glycol monomethyl ether, 1 part monoethanolamine.	MIL-STD-202H Method 215	0.5%
