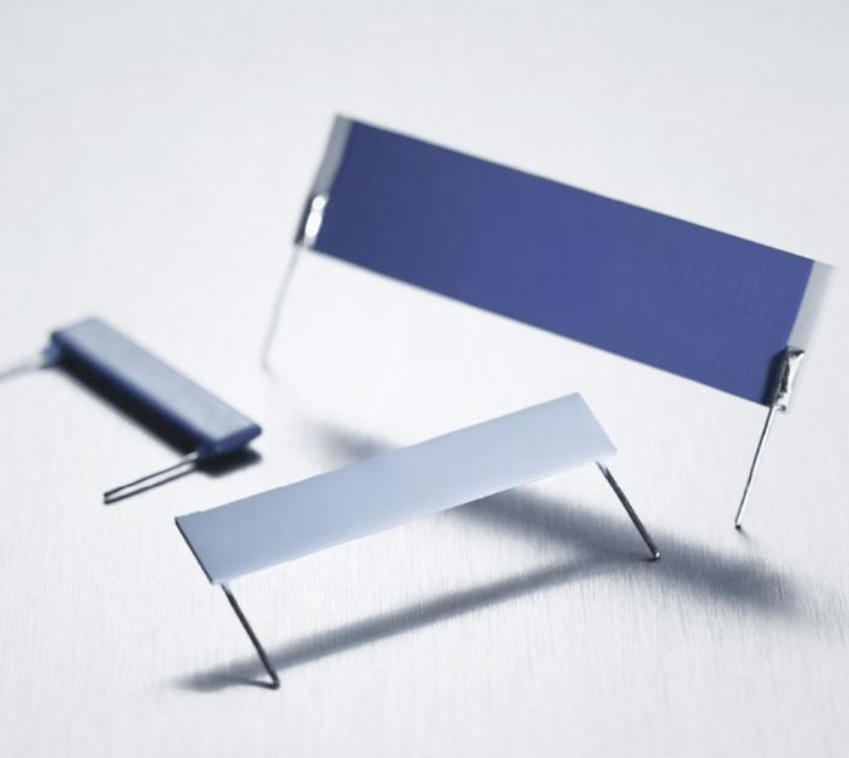

High Voltage Flat Resistors

High Voltage Flat Resistors, as the name suggests, are resistors designed to withstand high voltage applications. They are flat in shape, which helps in dissipating heat more efficiently and also allows for better mounting on printed circuit boards (PCBs) or other surfaces. These resistors are commonly used in power supplies, medical equipment, test and measurement devices, and various industrial electronics where they can encounter high voltages.

Key characteristics of High Voltage Flat Resistors include:

1. High Voltage Rating: They can handle much higher voltages than standard resistors, often rated up to several thousand volts.

2. Flat Design: The flat profile provides a larger surface area relative to its volume, which aids in thermal management.

3. High Power Handling Capability: Due to their design, these resistors can dissipate more power without overheating.

4. Stability and Reliability: They are built to maintain stable resistance values even under harsh conditions or prolonged exposure to high voltage.

5. Insulation Resistance: To ensure safety and performance, these resistors have high insulation resistance to prevent current leakage.

6. Corona Effect Resistance: Some models are specifically designed to resist the corona effect, a type of electrical discharge that can occur at high voltages.

When selecting a high voltage flat resistor for a specific application, it's important to consider factors such as the maximum operating voltage, power rating, tolerance, temperature coefficient, physical dimensions, and environmental conditions in which the resistor will operate.
