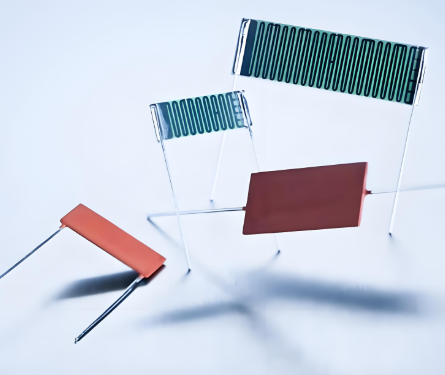

High-Voltage Flat Style Resistors TC of ±10 ppm/°C to ±200 ppm/°C, different coatings available up to 35 kV operating voltage

I. Product Features

Operating Voltage: Up to 35 kV.
Tolerance Range: ±10% to ±0.1%.
Ohm Range: 10 Ω to 30 GΩ (depending on the model).
Non-Inductive Design.
ROHS Compliant.

II. Technical Specifications

Resistance Value: 10 Ω ≤ 30 GΩ (depending on the model, inquire for details).
Resistance Tolerance: ±0.1% to ±10%.
Temperature Coefficient: ±15 ppm/°C to ±200 ppm/°C (referenced to +25°C at +85°C, lower values available for special low ohmic requirements).

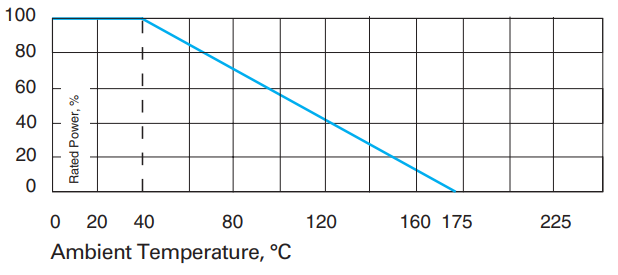

Max. Operating Temperature: -55°C to +175°C.
Dielectric Strength: >1,000 V (at 25°C, 75% relative humidity).
Insulation Resistance: >10,000 MΩ (at 500 V, 25°C, 75% relative humidity).
Overload: ΔR/R 0.25% max., 1.5 times Pnom for 5 seconds (not to exceed 1.5 times Vmax).
Load Life: ΔR/R 0.25% max.
Humidity Resistance: ΔR/R 0.25% max.
Thermal Shock: ΔR/R 0.2% max.
Encapsulation: Silicone Rubber (U) or Glass Coating (G), other coatings with different dielectric strengths available upon special request.
Lead Material: Tin-Plated Copper.
Weight: Depends on the model (inquire for details).
