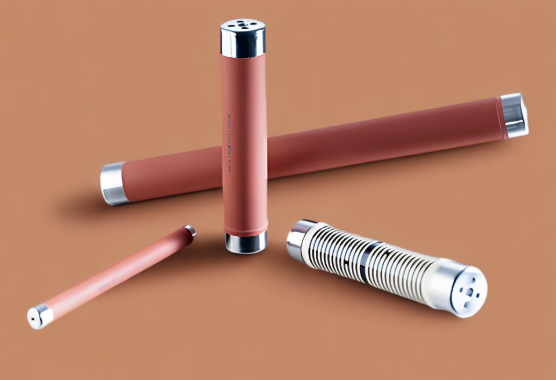

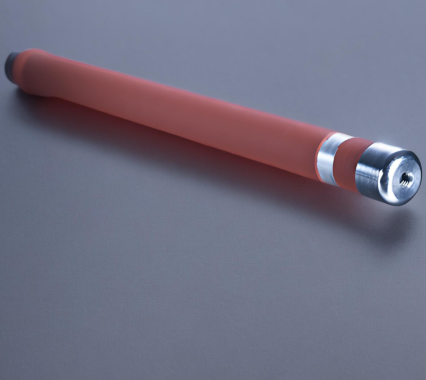

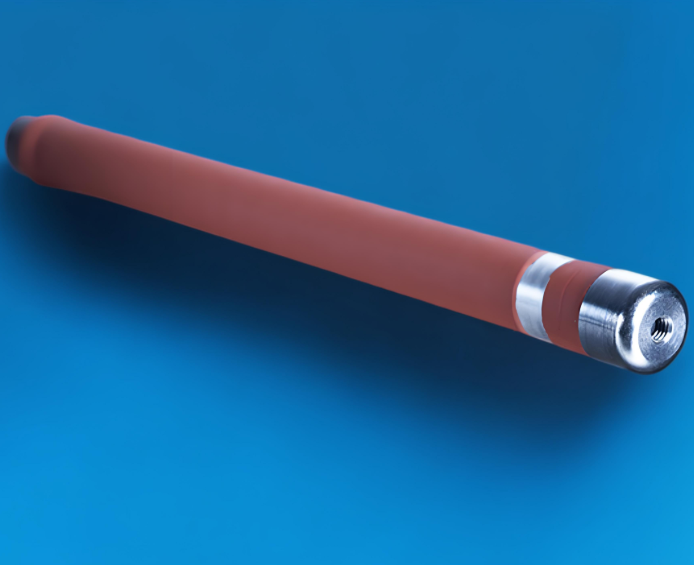

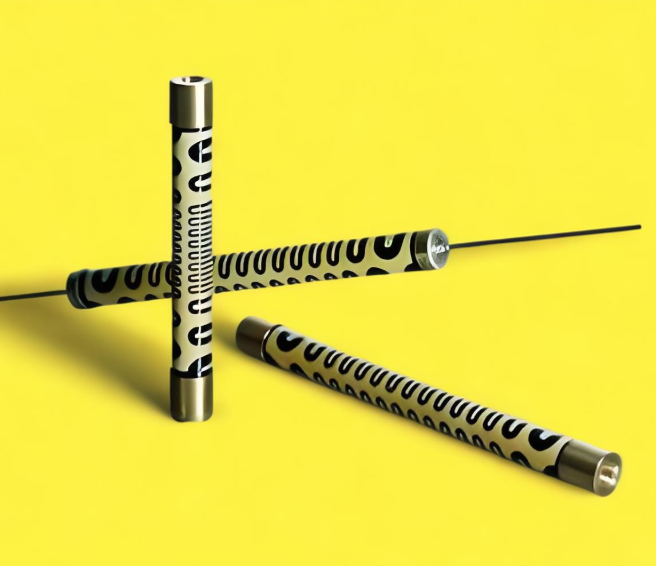

Precision High-Voltage / High Power Resistors Up to 96kV and 105W

I. Product Overview

The 22882 resistor series is specifically designed for applications such as voltage dividers, medical equipment, electrostatic devices, measurement equipment, and current-limiting devices. These applications require high stability, a low temperature coefficient of resistance (TCR), high ohmic values, and high short-term load capacity.

II. Product Features

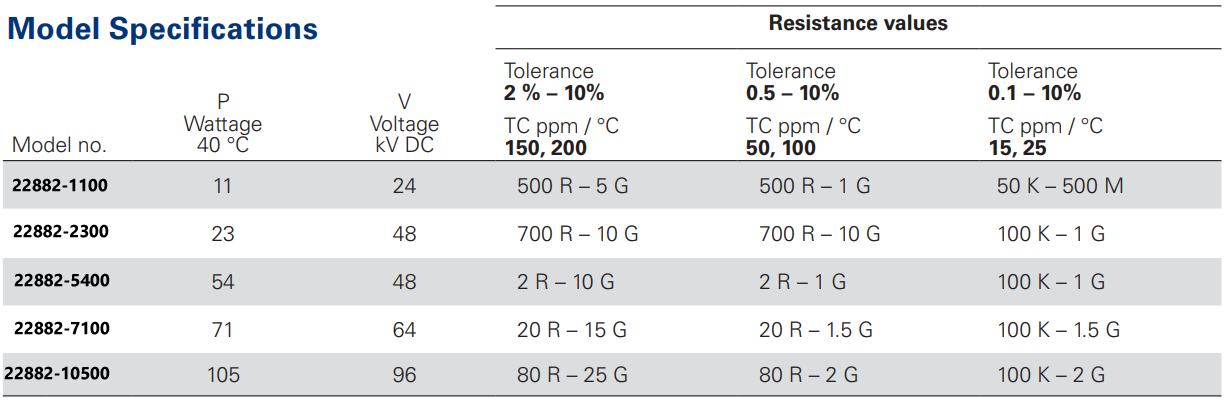

• Resistance Value: 2 Ω ≤ 25 GΩ (reference model specifications).

• Resistance Tolerance: ±0.1% to ±10%.

• Temperature Coefficient: ±10 ppm/°C to ±200 ppm/°C (referenced from +25°C to +85°C, lower for special low ohmic value requirements).

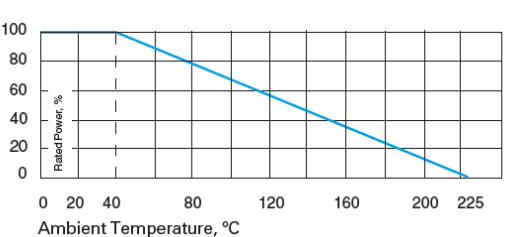

• Max. Operating Temperature: -55°C to +225°C.

• Dielectric Strength: >1,000 V (at 25°C, 75% relative humidity).

• Load Life: 1,000 hours at rated power, with a maximum ΔR/R of 0.5%.

• Moisture Resistance: Maximum ΔR/R of 0.25%.

• Thermal Shock: Maximum ΔR/R of 0.25%.

• Encapsulation: Standard coating is silicone rubber. A 2-component epoxy coating is recommended for oil-immersed and wave soldering applications (details upon inquiry). Other coatings can be provided based on special requirements.

• Lead Material: Nickel-plated copper.

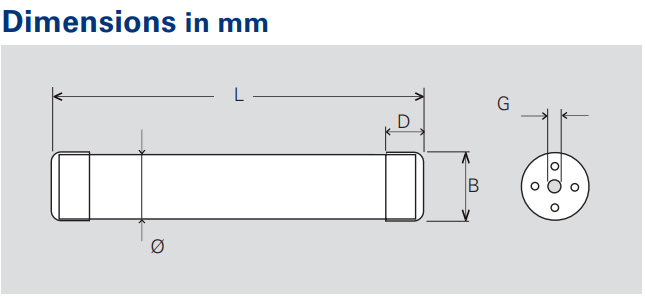

• Torque: 1.8 Nm to 2 Nm for M4, 3.8 Nm to 4 Nm for M8.

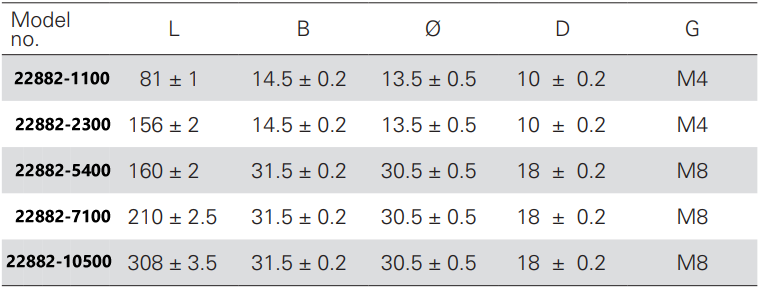

• Weight: Depends on model number (details upon inquiry).
