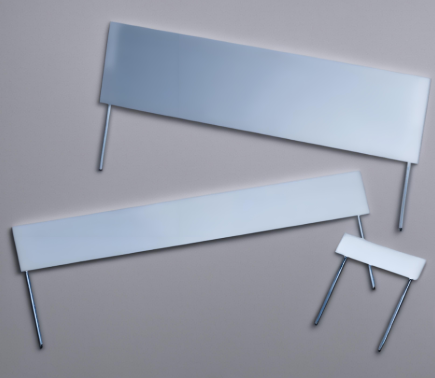

High-Voltage Flat Style Resistors TC of ±100 ppm/°C up to 22 kV operating voltag

I. Product Features

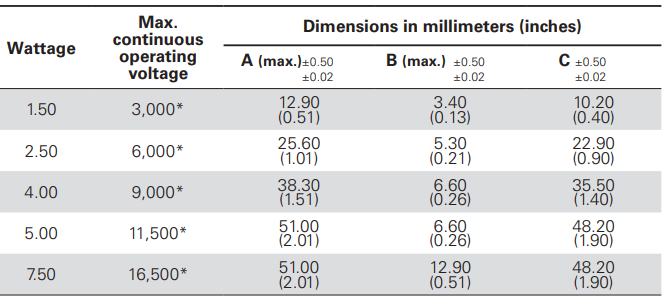

Operating Voltage: Up to 22 kV.
Protective Features: Features printed silicone surface protection or conformal silicone coating for high-temperature operation (up to 225°C).

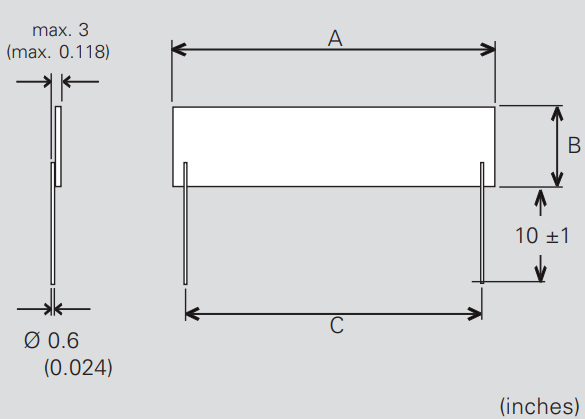

Thickness: To achieve high-density packaging, the maximum thickness is 3 mm (0.118 inches).
Non-Inductive Design: The product adopts a non-inductive design.
ROHS Compliant: The product meets ROHS environmental standards.


II. Technical Specifications

Temperature Coefficient: ±100 ppm/°C, measured from +25°C to +85°C. Special requirements for specific sizes and ohmic values can reduce it to ±15 ppm.

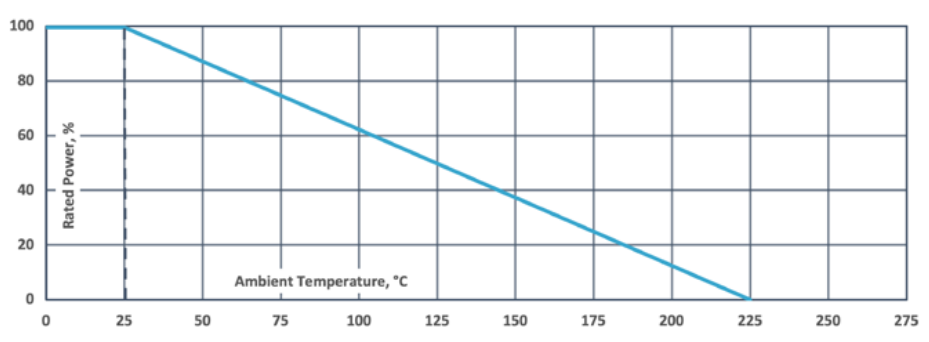

Max. Operating Temperature: -55°C to +225°C.
Voltage Coefficient: The voltage coefficient (ppm/V) corresponding to different resistance ranges is provided.




whatsapp
WHATSAPP
line
LINE
wechat
WECHAT
skype
SKYPE

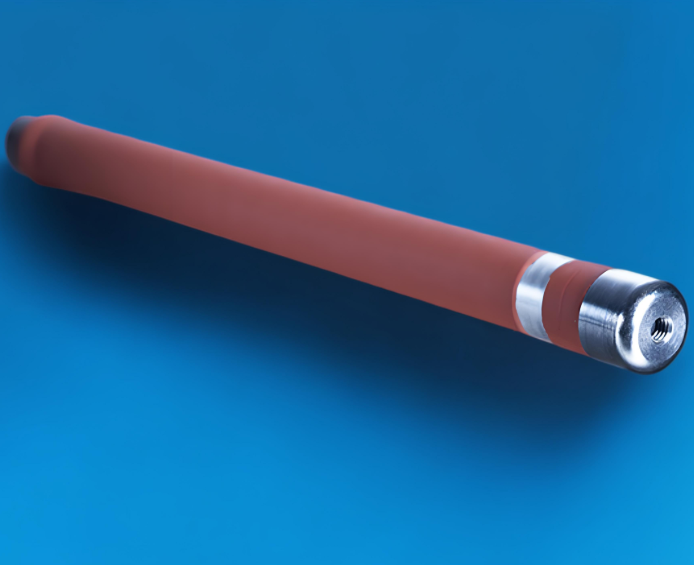

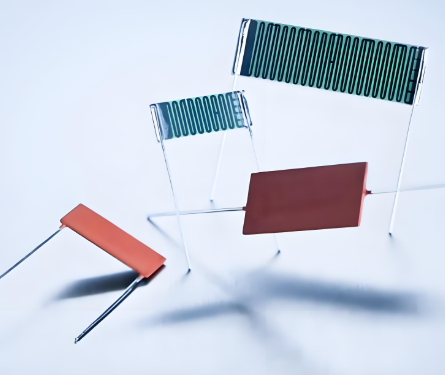

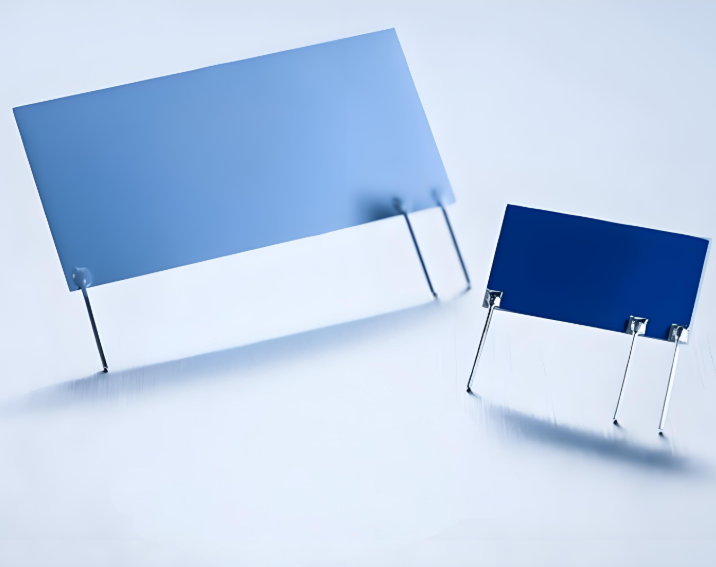

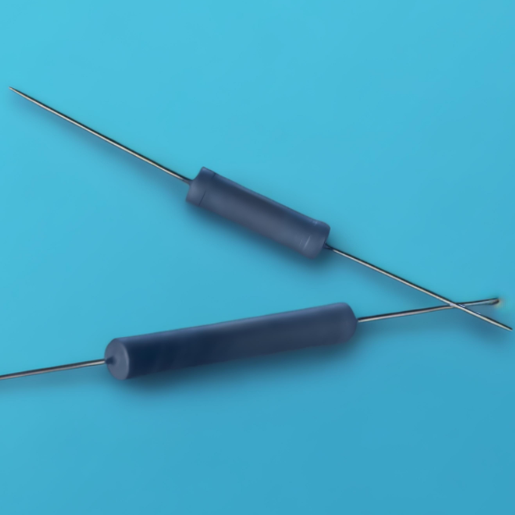

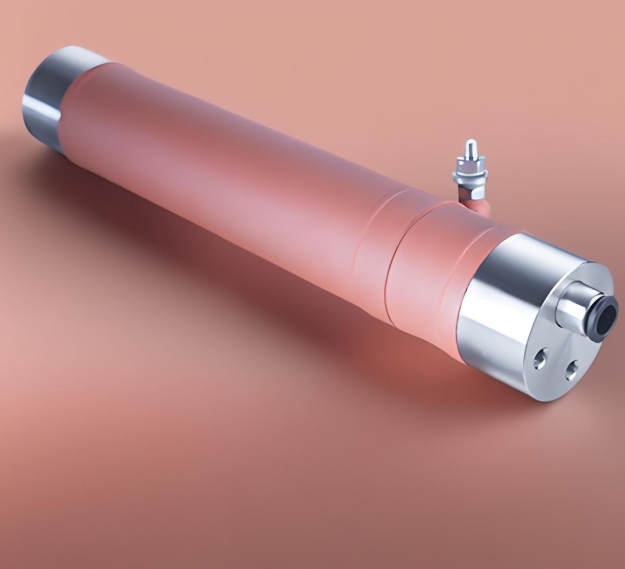

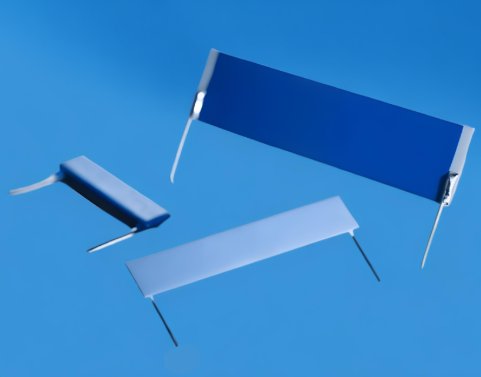

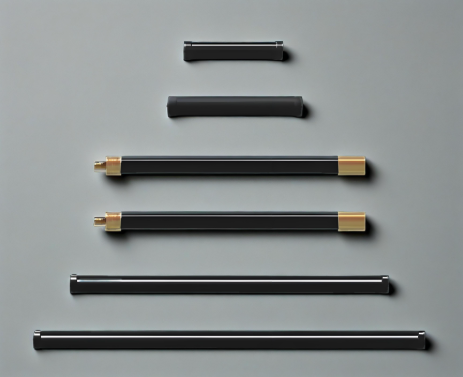

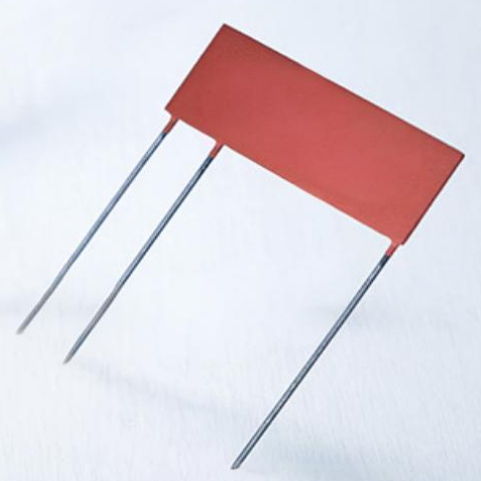

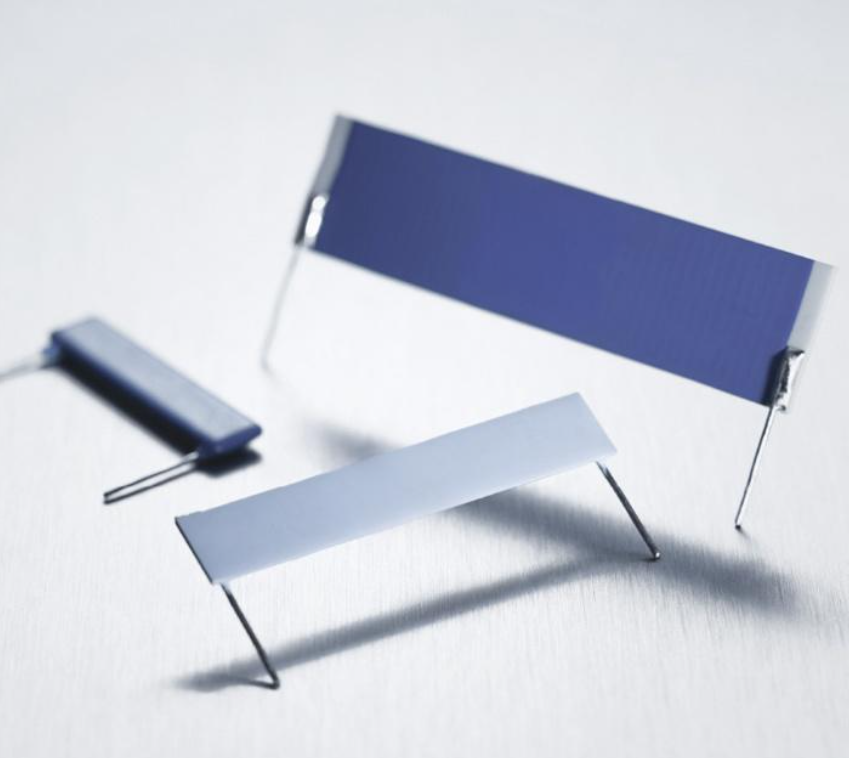

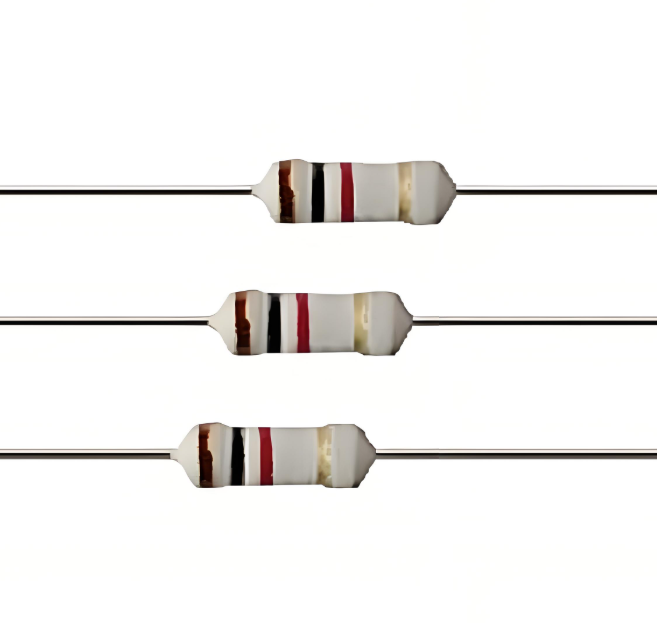

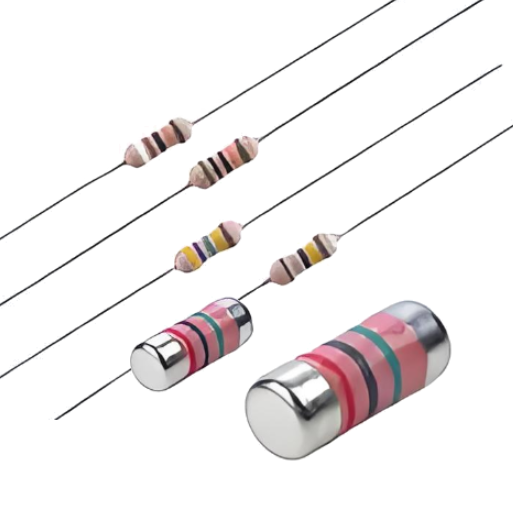

In addition to High-Voltage Flat Style Resistors TC of ±100 ppm/°C up to 22 kV operating voltag, we also focus on the following resistors:
