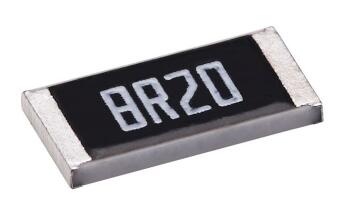

Moisture Resistant Resistors

The Tantalum Nitride thin film resistor forms an impermeable tantalum pentoxide barrier layer, capable of withstanding thousands of bias humidity tests at 85°C / 85% relative humidity. This precision and durability make it an ideal choice for applications requiring stability, reliability, and critical environments. The TaN thin film resistor is suitable for your high-end design.

Features	Precision	Resistance Range	Temperature Drift (ppm/°C)	Package
High stability in humid environments Complies with AEC-Q200 Low tolerance down to ±0.05% Extremely low TCR up to 10 PPM/°C Resistance values from 10 ohms to 1M ohms Special materials, design, and processing for high sulfur applications Tested for resistance to moisture, humidity, and sulfur	±0.05% ±0.1% ±0.25% ±0.5% ±1%	1Ω-1MΩ	±10 ±15 ±25 ±50	2512/1206

Standard Electrical Specifications

Type	Rated Power at 70°C	Operating Temperature Range	Maximum Working Voltage	Maximum Overload Voltage	Resistance Range	Temperature Coefficient (PPM/°C)
0402	1/16W	-55°C + 155°C	50V	100V	40Ω-35KΩ	±10 ±15 ±25 ±50
0603	1/6W	-55°C + 155°C	75V	150V	40Ω-130KΩ	±10 ±15 ±25 ±50
0805	1/5W	-55°C + 155°C	100V	200V	10Ω-350KΩ	±10 ±15 ±25 ±50
1206	1/2W	-55°C + 155°C	200V	400V	1Ω-1MΩ	±10 ±15 ±25 ±50

Working voltage = √(P * R) or the maximum working voltage listed above, whichever is lower.

Overload voltage = 2.5 * √(P * R) or the maximum overload voltage listed above, whichever is lower.

LINE

WECHAT

SKYPE

Resistor Information(Moisture Resistant Resistors)

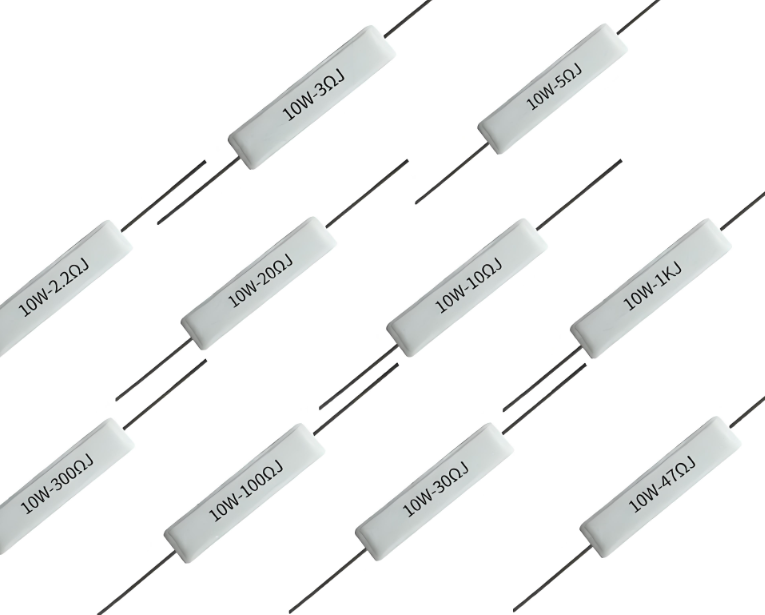

Top High Moisture Resistant Resistors for Harsh Conditions+T

IntroductionIn the w...

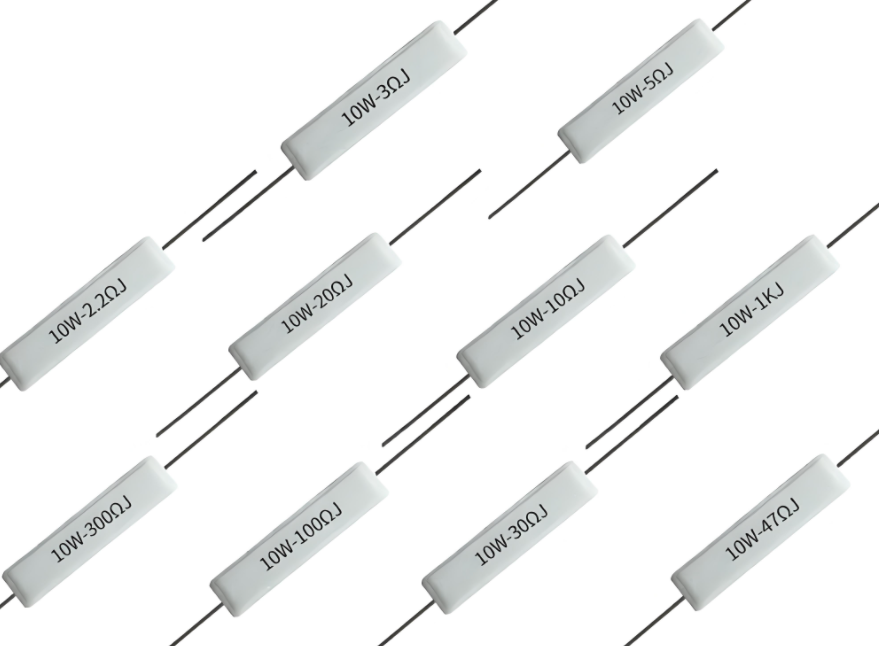

High Performance Metal Film Resistors for Moisture-Prone Applications+T
