Lead-Free Resistors

Lead-Free Resistors, Green SMD ResistorsFeaturesResistance RangePrecisionTemperature Coefficient (ppm/°C)

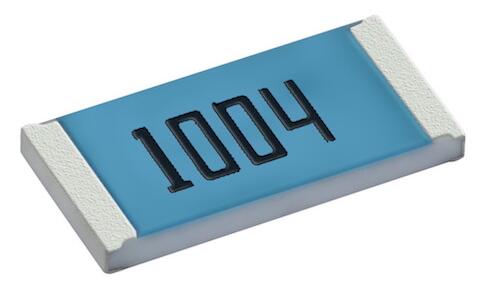

crg.jpgGreen Thick Film SMD Resistor

  • No RoHS-exempt green resistor.

  • Highly reliable multi-layer electrode structure.

  • Compatible with all soldering processes.

  • Lead and its compounds content is 0.

0Ω~10MΩ±1%~±5%100/200
PackageRated Power at 70°COperating Temperature RangeHighest Operating VoltageHighest Overload VoltageResistance RangeTemperature Coefficient (PPM/°C)
04021/16W-55°C to +155°C50V100V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
06031/10W-55°C to +155°C75V150V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
08051/8W-55°C to +155°C150V300V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
12061/4W-55°C to +155°C200V400V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
12101/3W-55°C to +155°C200V400V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
20103/4W-55°C to +155°C200V400V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200
25121W-55°C to +155°C250V500V1Ω-9.76Ω ±1%
1MΩ-10MΩ ±5%		±200
±100
±200

Operating Voltage = √(P * R) or the maximum operating voltage listed above, whichever is lower.

Overload Voltage = 2.5 * √(P * R) or the maximum overload voltage listed above, whichever is lower.

whatsapp
WHATSAPP
line
LINE
wechat
WECHAT
skype
SKYPE
Resistor Information(Lead-Free Resistors)

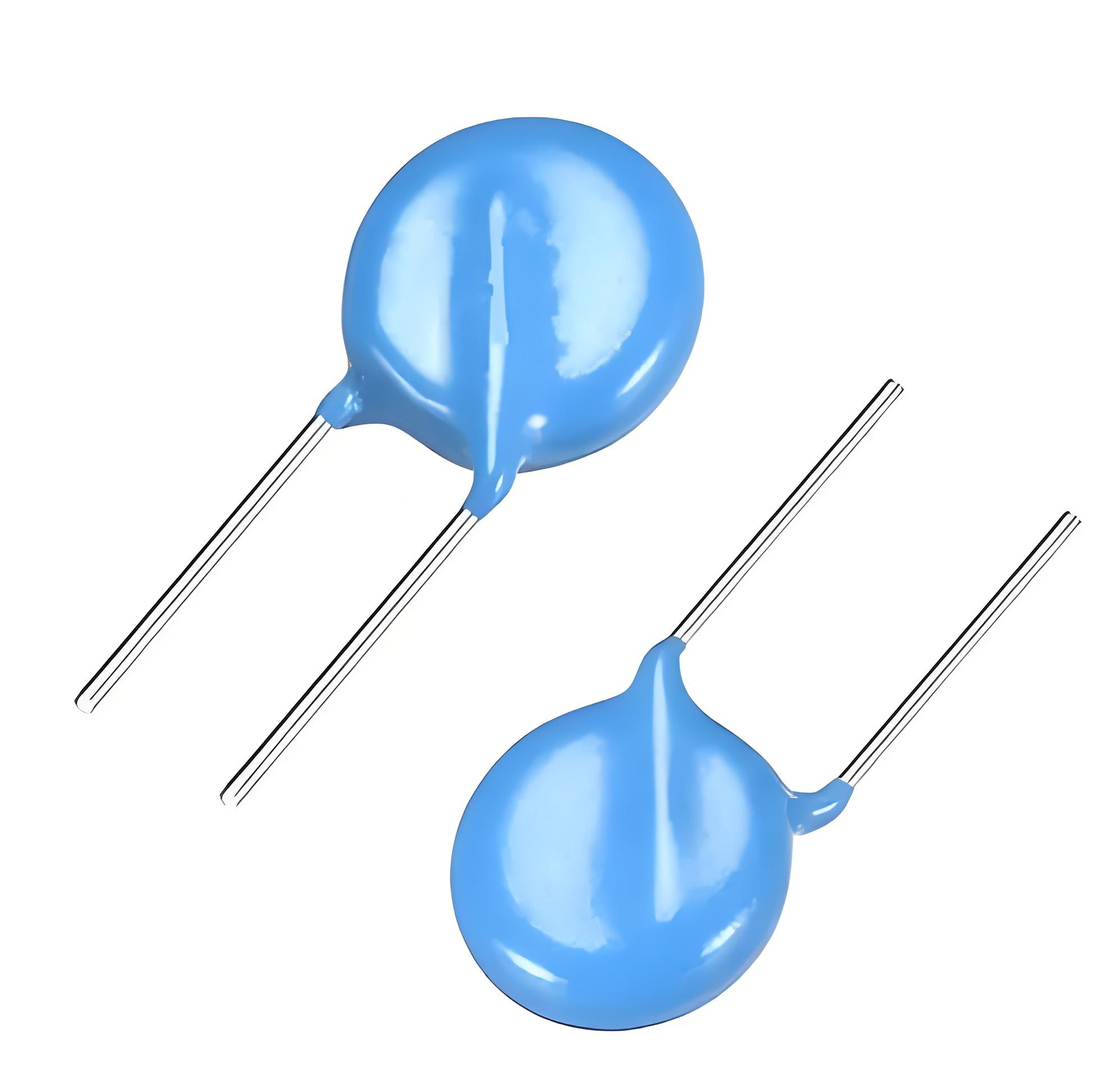

The Critical Role of Lead-Free Resistor Tolerance in Modern Electronics and How to Choose the Right One
The Critical Role of Lead-Free Resistor Tolerance in Modern Electronics and How to Choose the Right One+T
The Critical Role of...

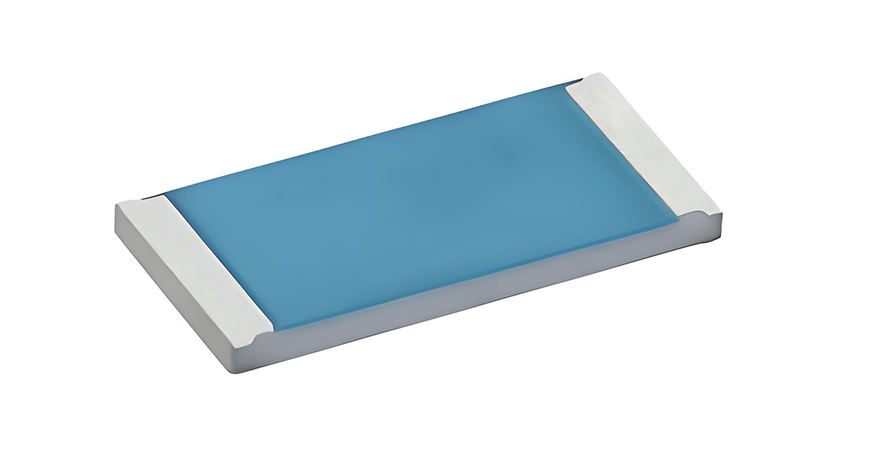

Exploring the Benefits and Applications of Surface Mount Lead-Free Resistors in Modern Electronics
Exploring the Benefits and Applications of Surface Mount Lead-Free Resistors in Modern Electronics+T
Exploring the Benefi...

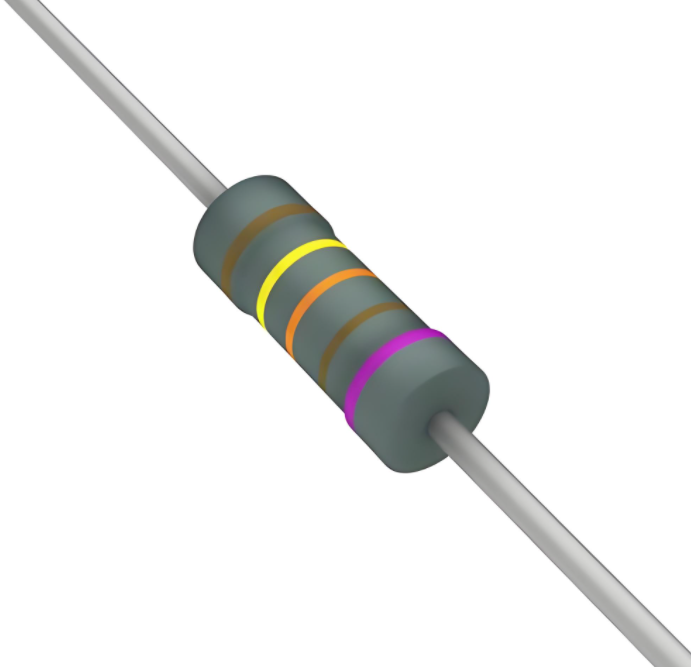

Lead - Free Resistors Product Certification: Key Considerations for Buyers and Suppliers
