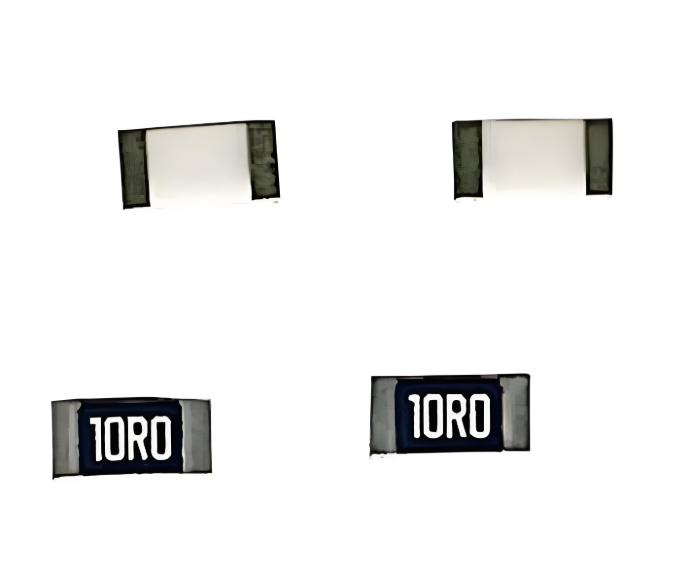

TYRMB Precision Chip Alloy Foil Resistor
Resistor Supplies
TYRMB Precision Chip Alloy Foil Resistor

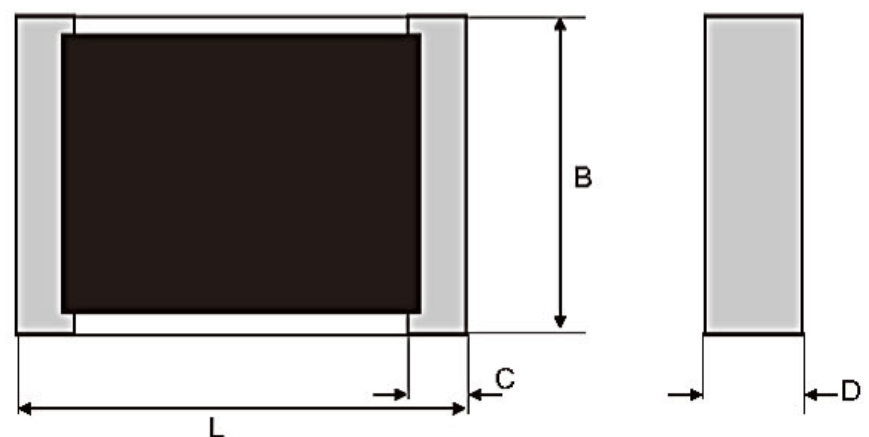

Dimensions
| Model | L (mm) | B (mm) | D MaxMax (mm) | C (mm) |
|---|---|---|---|---|
| 1206 | 3.20 ± 0.20 | 1.60 ± 0.13 | 0.64 | 0.50 ± 0.20 |
| 2512 | 6.30 ± 0.20 | 3.20 ± 0.13 | 0.64 | 0.70 ± 0.20 |
| Characteristic | Details |
|---|---|
| Precision | up to 0.01% |
| Temperature Coefficient (TCR) | Low |
| Noise | Extremely Low |
| Inductance | No |
| Model | RMB1206 (3216) | RMB2512 (6332) |
|---|---|---|

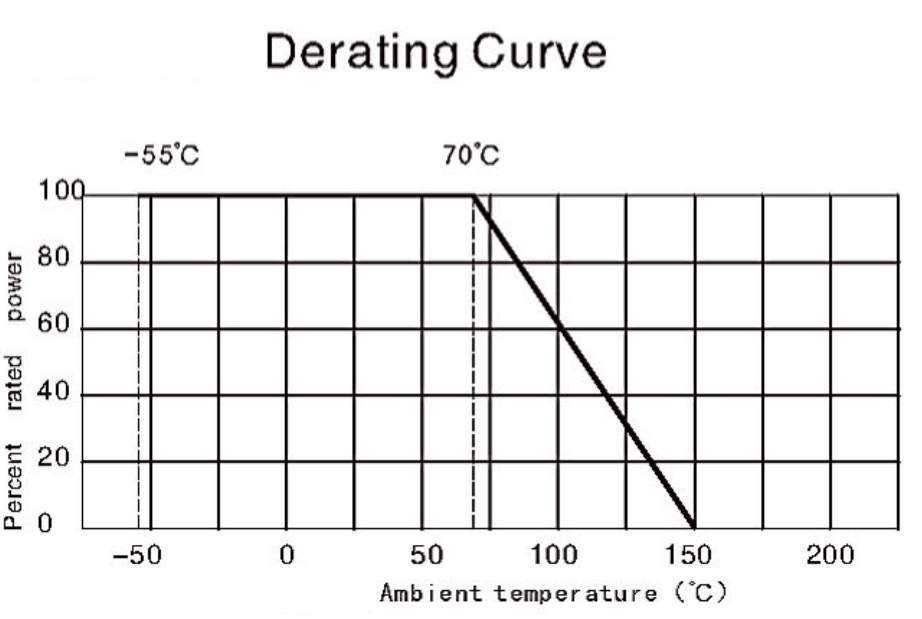

| Rated Power at 70℃ (W) | 0.2 | 0.4 |
| Max Working Voltage (V) | 90 | 250 |
| Resistance Range (Ω) | 10R～5K | 10R～20K |
| Tolerance Range | ±0.01 (R≥250Ω), ±0.05 (R≥50Ω), ±0.25 (R≥10Ω) | |
| TC-Range (10⁶/K) | ±3 (R≥250Ω), ±4 (R≥50Ω), ±6 (R≥10Ω) |
Performance Characteristics
| Test Items | Standards |
|---|---|
| Short Time Overload | 2.5 times rated voltage, not exceeding 2 times component limit voltage for 5s |
| Temperature Shock | -65℃ to 150℃, 5 cycles |
| Low Temp. Operation | -65℃, rated load voltage for 45min |
| Resistance to Dry Heat | 150℃ for 100h |
| Resistance to Solder | 245℃±5℃, 60±55 |
| Resistance to Moisture | 25℃~65℃, relative humidity 80%~100% |
| Load Life | 70℃, rated load, 2000h |
| Application | Aviation, aerospace, marine, radar, communication, automatic control, high-precision instruments |
WHATSAPP
LINE
WECHAT
SKYPE
In addition to TYRMB Precision Chip Alloy Foil Resistor, we also focus on the following resistors:
-
TYRMB Precision Chip Alloy Foil Resistor
-
30W TO-220 Planar Alloy Foil, Non-inductive Power Resistor
-
100W TO-247 Planar Alloy Foil, Non-inductive Power Resistor
-
400W Planar Alloy Foil, Non-inductive High-power Resistor
-
250W Planar Alloy Foil, Non-inductive High-power Resistor
-
600W Planar Alloy Foil, Non-inductive High-power Resistor
-

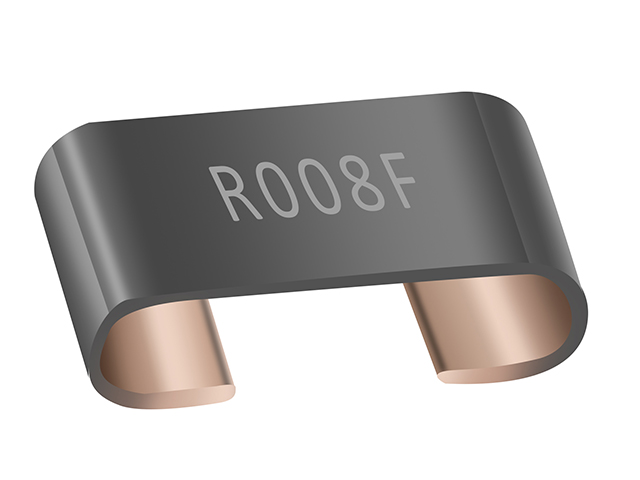

Alloy Shunt chip Resistors type S
-

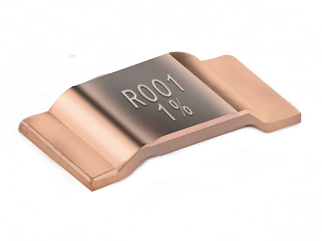

Alloy Shunt chip Resistors type R
-

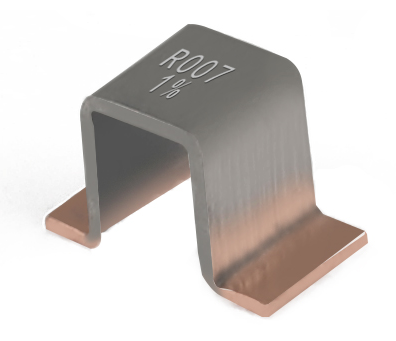

Alloy Shunt chip Resistors type J
-

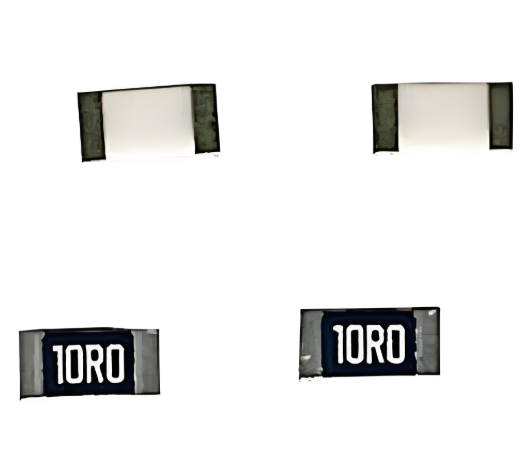

TY Precision Chip Resistor
-
TYPCR Precision Thick Film Chip Resistor
-
TYRM Precision Thin Film Chip Resistor
-
BFL Precision Metal Film Strip Chip Shunts
-
MEF Series Cylindrical Precision Chip Metal Film Resistors
-
Alloy Resistor
-
WFL Plastic-Encased Precision Metal Film Strip Chip Shunt
-

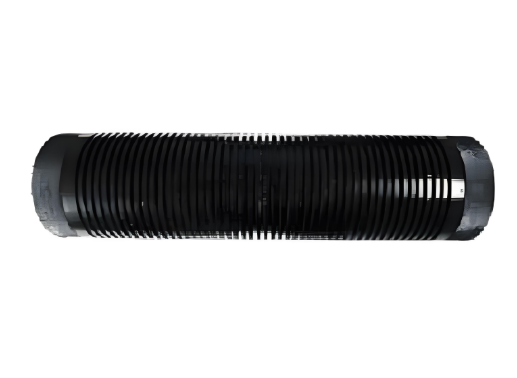

RXLG - A (RXG) high power aluminum alloy resistor
-
RXLG - T High voltage withstand power aluminum alloy resistor
-

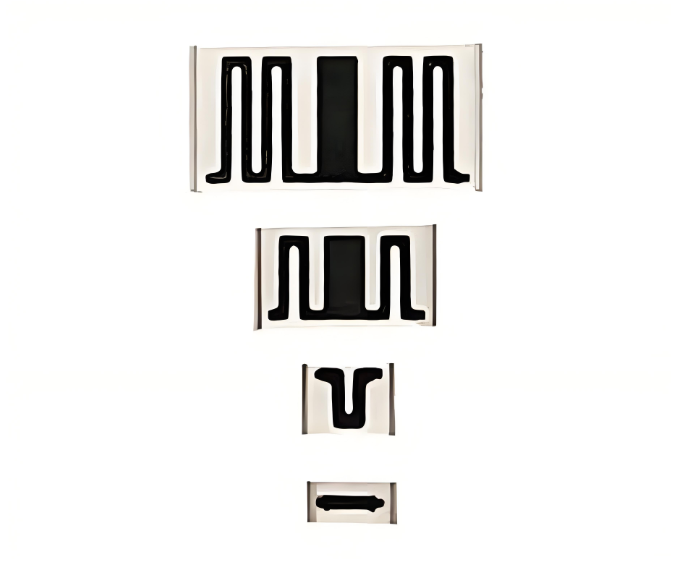

TYHT High Temperature Chip Resistor
-

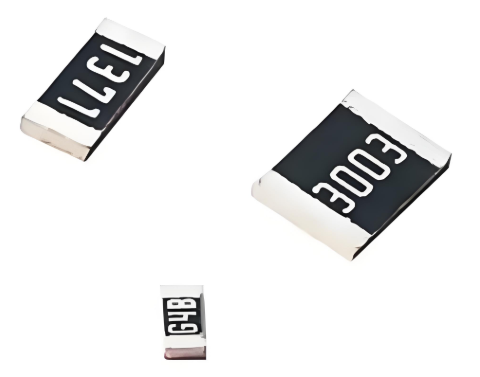

TYTRM Thick Film Chip Resistor
-
TYCHR Bondable Thick Film Chip Resistor
-
TYCHS High Resistance Thick Film Chip Resistor
-
Customizable Ultra-Low TCR Shunt Chip Resistors
-

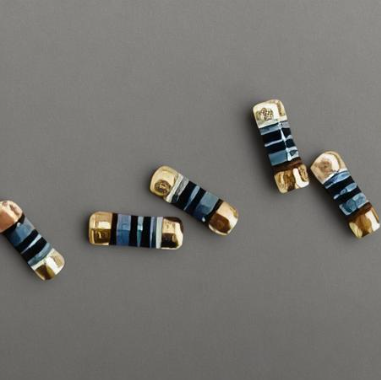

MEFH Series Cylindrical Chip High-Temperature Metal Film Resistors
