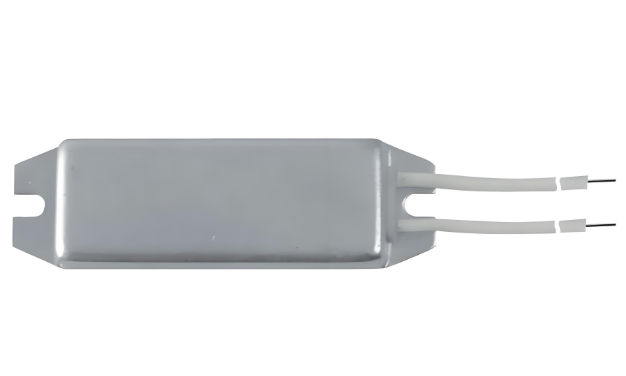

RXL power aluminum encased wire - wound resistors

Features

High power, firmly and shock - proof
Good heat - sink, low TCR, linearly
Easy to be mounted with heat sink

Applications

Used in engineering mechanism
Electric power distribution, load test instruments and equipments
Auto control devices

Technical Specifications

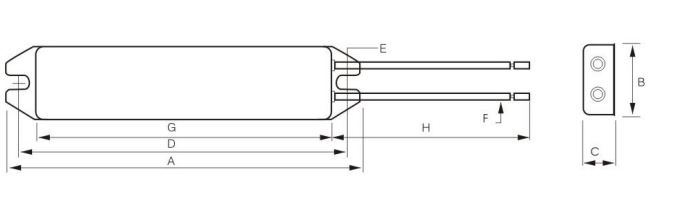

Type	Rated Power	Resistance Range (Ω)	TRC (10⁻⁶/K)	Dimensions (mm)
				A	B	C	D	E	F	G	H
RXL60	60W	1 - 10K	200	100	30	13	90	4.5	0.75mm²	75	300
RXL80	80W	1 - 10K		150	34	21	140	5	0.75mm²	125	300
RXL120	120W	1 - 10K		182	42	21	172	6	0.75mm²	150	300

Performance

Characteristics	Specifications	Test Methods
Short - term overload	△R ≤ ±(2%R ± 0.05Ω)	√5RP, 5s
Withstanding Voltage	No mechanical damage, no breakdown, no flare	1000V Ac, 1mA, 60s ± 5s
Insulation resistance	≥1GΩ	Measuring Voltage: 500 ± 50V
Temperature coefficient	±260ppm/°C	GB/T 5729 - 2003 Article 4.8

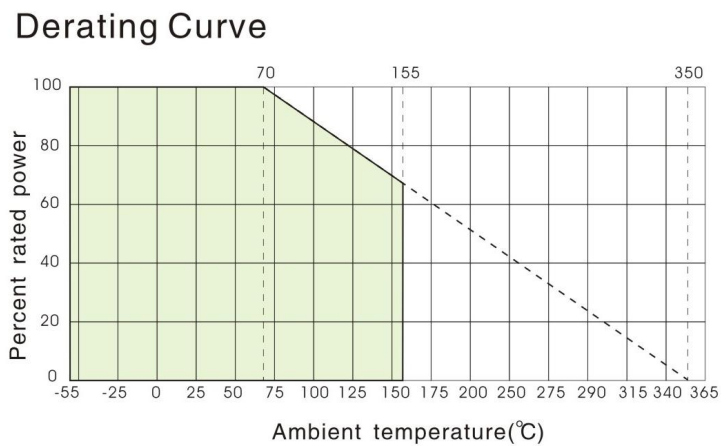

Reduce Power Loss	When the ambient temperature rises from 70°C to 275°C, the permissible load of the resistor decreases from 100% to 0% of the rated power.	-
Long Term Life	△R ≤ ±(5%R ± 0.1Ω)	1000h, 1.5h energized, 0.5h de - energized
Surface Temperature Rise	≤210°C	GB/T 5729 - 2003 Article 4.14, Apply rated voltage to achieve thermal stability
