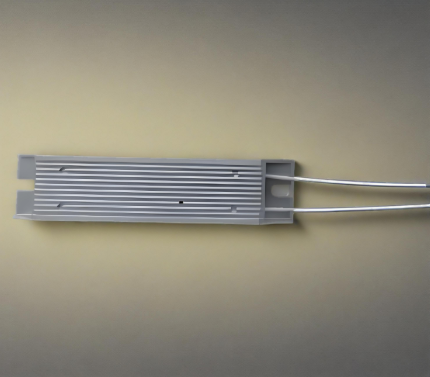

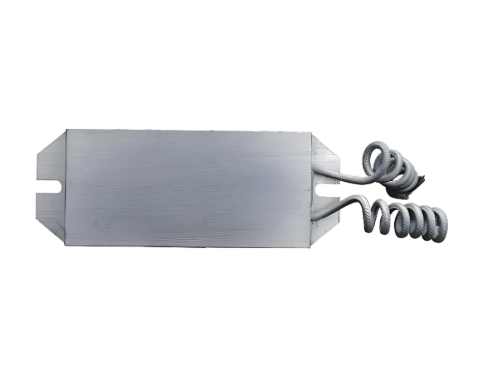

RXLB power aluminum encased wire - wound resistors

Features

Resistance to vibration and moisture
Easy to attach radiator, easy to install

Applications

Inverter, power supply and other harsh industrial control environment

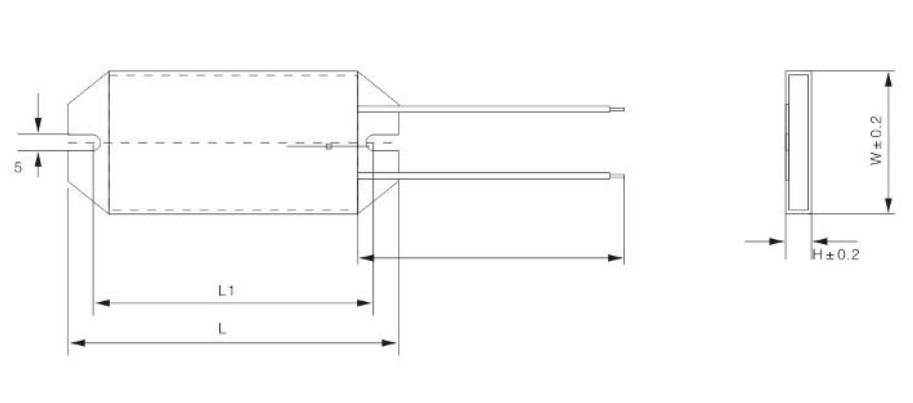

Dimensions (mm)

Type	Rated power 70°C	Resistance range	Dimensions (mm)				Precision
			L±1	L1±0.5	H±0.5	W±0.5
RXLB - 40	40W	1R - 100R	100	85	8	45	±5%
RXLB - 60	60W	2R - 200R	118	103	8	45
RXLB - 80	80W	2R - 500R	127	115	8	45	±10%
RXLB - 150	150W	3R - 900R	195	188	12.5	60

Performance

Characteristics	Specifications	Test Methods
Short - term overload	△R≤ ±(2%R + 0.05Ω)	√5RP, 5s
Withstanding Voltage	No mechanical damage, No breakdown flying arc	1000V Ac 1mA 60s ± 5s
Insulation resistance	≥1GΩ	Measuring Voltage: 500 ± 50V
TCR	±260 (10⁻⁶/K)	GB/T 5729 - 2003 Article 4.8

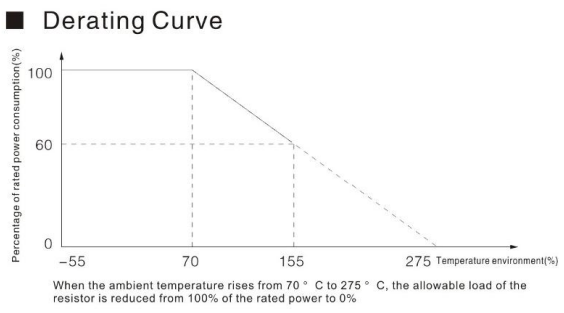

Reduce Power Loss	When the ambient temperature rises from 25°C to 275°C, the allowable load of the resistor is reduced from 100% of the rated power to 0%	-
long term life	△R≤ ±(5%R + 0.1Ω)	1000h, 1.5h energized, 0.5h de - energized
surface temperature rise	≤210°C	GB/T 5729 - 2003 Article 4.14 rated power to achieve thermal equilibrium
