Aluminum Nitride Resistance

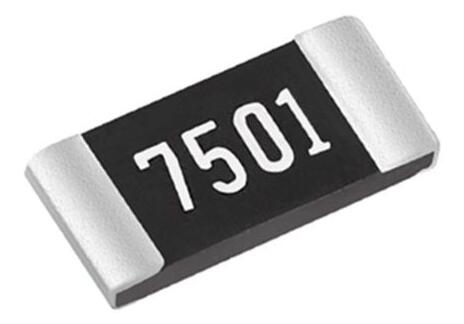

Aluminum Nitride High Power Resistor

Product	Power	Features	Precision	Resistance Range	Temperature Coefficient (ppm/°C)	Package
	1206-2W 2512-6W	High thermal conductivity aluminum nitride substrate Rated power up to 6.0W Resistance range 50Ω - 30.1KΩ ±0.1% Resistance tolerance can reach ±0.1% TCR up to ±25ppm/°C	±0.1% ±0.25% ±0.5% ±1%	50Ω-30.1KΩ	±25 ±50	2512/1206

Standard Electrical Specifications

Type	Rated Power at 70°C	Operating Temperature Range	Max. Operating Voltage	Max. Overload Voltage	Resistance Range	Temperature Coefficient (PPM /°C)
1206	2W (1)	-55°C ~ +150°C	100V	200V	50Ω-30.1KΩ	±25 ±50
2512	6W (1)	-55°C ~ +150°C	100V	200V	100Ω-30.1KΩ	±25 ±50

Operating Voltage = √(P * R) or the maximum operating voltage listed above, whichever is lower.

Overload Voltage = 2.5 × √(P * R) or the maximum overload voltage listed above, whichever is lower.

(1) Depends on the components installed by the user.

LINE

WECHAT

SKYPE

Resistor Information(Aluminum Nitride Resistance)

Key Aluminum Nitride Resistance Properties to Specify When Ordering Substrates+T

IntroductionAluminum...

Why Aluminum Nitride's Resistance Properties Make It Ideal for RF Applications+T

IntroductionAluminum...

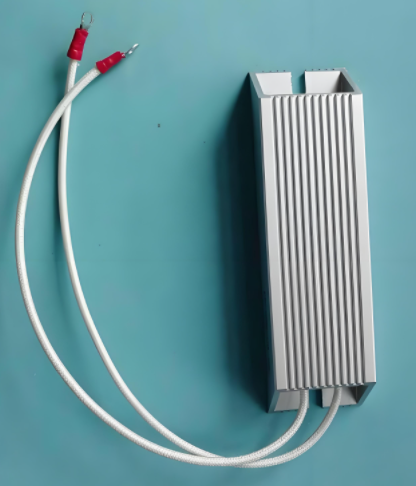

Aluminum Nitride resistance to molten metals in electronic industry applications+T
