TYHT High Temperature Chip Resistor

  • High temperature applications up to 300°C

  • Chip resistors in thick film technology

  • PTC temperature sensors available (up to 250°C)

  • PtAg - terminals

  • Suitable for conductive epoxy applications and soldering

  • Suitable for high vacuum applications - no organics

  • Wire bondable resistors series CBW with Au - terminals available (up to 200°C)

  • Non - magnetic


  • Tolerance ranges from 1% available

  • TCR is valid for the temperature range +25°C …+125°C

  • The final measuring of the resistors takes place at room temperature (independent of TCR)

  • Please pay attention to the interconnection technology at high temperature applications.

  • Climatic category acc. to EN 60068 - 1: 55/300/56

  • Stability complies with the values of the basic series

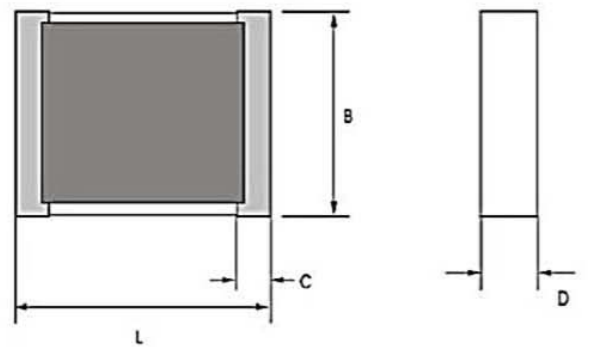

TypeL (Tolerance)B (Tolerance)D (Tolerance)C (Tolerance)
04021.04 (±0.05)0.5 (±0.05)0.3 (±0.05)0.1 (+0.1 / -0.05)
05041.25 (+0.15 / -0.05)1.0 (+0.15 / -0.05)0.3 (+0.15 / -0.05)0.2 (+0.2 / -0.1)
06031.5 (+0.15 / -0.05)0.8 (+0.15 / -0.05)0.4 (+0.15 / -0.05)0.2 (+0.2 / -0.1)
06121.5 (+0.2 / -0.05)3.2 (+0.15 / -0.05)0.4 (+0.15 / -0.05)0.3 (+0.2 / -0.1)
08052.0 (+0.15 / -0.05)1.25 (+0.15 / -0.05)0.4 (+0.15 / -0.05)0.3 (+0.2 / -0.1)
12063.2 (+0.15 / -0.05)1.5 (+0.2 / -0.05)0.4 (+0.15 / -0.05)0.3 (+0.2 / -0.1)
12103.2 (+0.15 / -0.05)2.5 (+0.2 / -0.05)0.5 (+0.15 / -0.05)0.8 (±0.2)
12163.2 (+0.2 / -0.05)4.1 (+0.2 / -0.05)0.5 (+0.2 / -0.1)0.4 (±0.2)
1216H3.2 (+0.2 / -0.05)4.1 (+0.2 / -0.05)0.5 (+0.2 / -0.1)0.4 (±0.2)
20105.1 (+0.15 / -0.05)2.5 (+0.2 / -0.05)0.6 (+0.2 / -0.1)1.2 (±0.2)
25126.3 (+0.15 / -0.05)3.5 (+0.2 / -0.05)0.6 (+0.15 / -0.05)0.9 (±0.2)
402010.2 (+0.2 / -0.05)5.1 (+0.2 / -0.05)0.6 (+0.2 / -0.1)0.9 (±0.2)


  • Bulk in plastic bags - minimum quantity 100 pieces per value

  • Blistertape acc. to EN 60286 - 3 - minimum 1000 pieces per value

  • Reel diameter 180 mm or 330 mm
