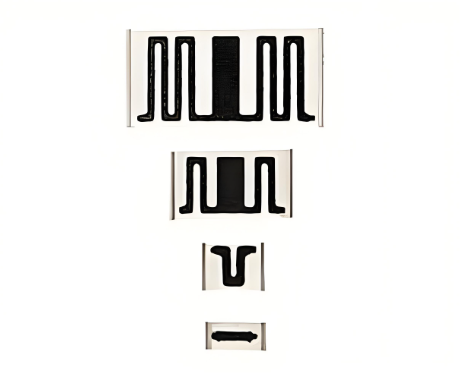

TYCHR Bondable Thick Film Chip Resistor

Product Features

Chip resistors in thick film
Contact areas: Pt - Ag, non - magnetic
Suited for gluing and soldering
RF versions: untrimmed or air - abrasive trimmed (0805, 1206)

Application Areas

Computers
Telecom and wireless
Meters and instruments
Electrical devices

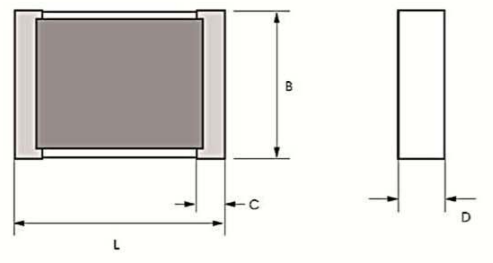

Type	L (mm)	B (mm)	D (mm)	C (mm) (Surrounding Electrode Width)
0402	1.04 ± 0.05	0.5 ± 0.05	0.3 ± 0.05	0.1 +0.1/-0.05
0504	1.25 +0.15/-0.05	1.0 +0.15/-0.05	0.3 +0.15/-0.05	0.2 +0.2/-0.1
0603	1.5 +0.15/-0.05	0.8 +0.15/-0.05	0.4 +0.15/-0.05	0.2 +0.2/-0.1
0805	2.0 +0.15/-0.05	1.25 +0.15/-0.05	0.4 +0.15/-0.05	0.2 +0.2/-0.1
1206	3.2 +0.15/-0.05	1.5 +0.2/-0.05	0.4 +0.15/-0.05	0.3 +0.2/-0.1

Note: L stands for length, B stands for width, D stands for thickness, and C stands for surrounding - electrode width (mm).

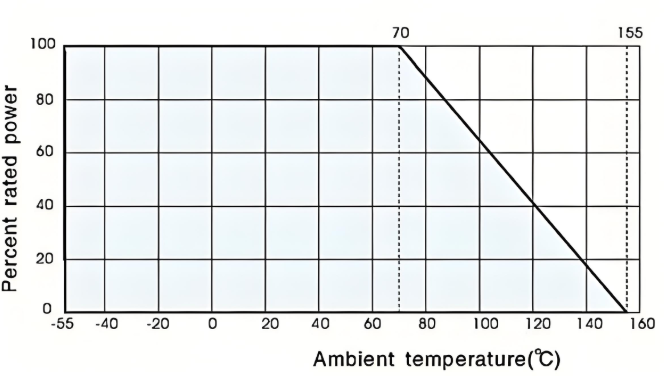

Type	Power rating (mW)	Working voltage (V)	Resistance ranges/Tolerances/TCR (ppm/°C)
		trimmed	untrimmed	1R - 10R	10R - 100R	100R - 1M	1M - 10M
0402	50	30	100	10/20% TC100/250	5/10% TC50/100	2/5/10% TC50/100	5/10/20% TC50/100
0504	100	50	150	5/10/20% TC100/250	2/5/10% TC50/100	1/2/5/10% TC50/100	1/2/5/10% TC50/100
0603	100	75	220	5/10/20% TC100/250	2/5/10% TC50/100	1/2/5/10% TC50/100	1/2/5/10% TC50/100
0805	125	100	300	5/10/20% TC100/250	1/2/5/10% TC50/100	0.5/.../10% TC50/100	1/2/5/10% TC50/100
1206	250	200	600	5/10/20% TC100/250	1/2/5/10% TC50/100	0.5/.../10% TC50/100	1/2/5/10% TC50/100

Information Category	Details
Temperature range	- 55°C ~ 155°C
Climatic category (acc. to IEC 60068)	55/155/56
Solderability (acc. IEC 60068 - 2 - 58)	235°C, 2s
Max. Soldering temperature (acc. IEC 60068 - 2 - 58)	260°C, 10s
Long - term stability (≥10R)	Storage 125°C/1000h: < 0.5%; Storage 155°C/1000h: < 1%; Load /70°C/1000h: < 0.5%; Short - term overload: < 0.25%; Damp heat(56d/40°C/96%): < 0.5%
Long - term stability (<10R)	Storage 125°C/1000h: < 1%; Storage 155°C/1000h: < 2%; Load /70°C/1000h: < 1%; Short - term overload: < 0.5%; Damp heat(56d/40°C/96%): < 1%
