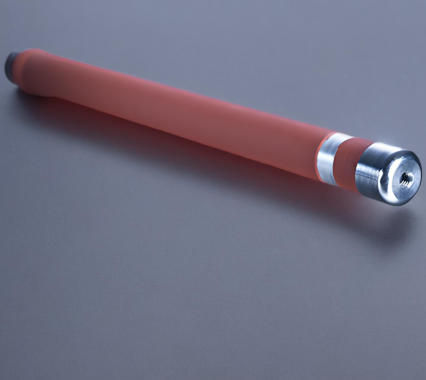

Precision High-Voltage Divider up to 50W and up to 80kV

I. Product Overview

This resistor consists of high-quality, high-precision, high-power, and high-voltage dividers, designed for use in complex resistor networks. These custom designs support a wide range of resistance values, precise voltage ratios, tight tolerances, and low temperature coefficients of resistance (TCR).

II. Product Features

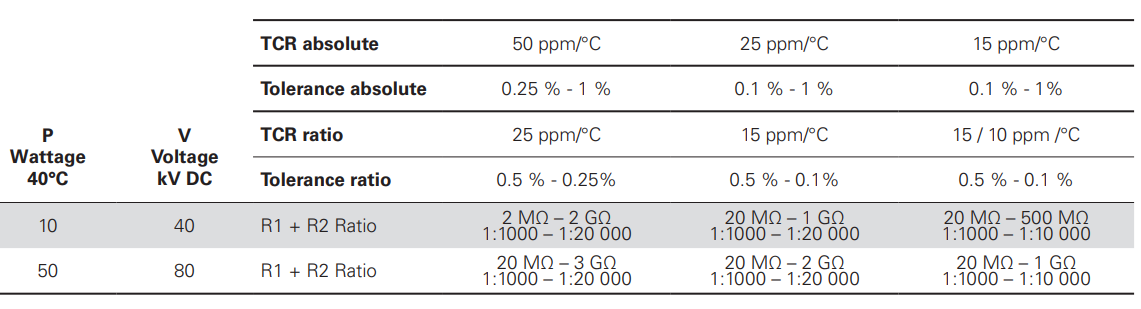

• Resistance Value: Refer to model specifications.

• Resistance Tolerance: Refer to model specifications.

• Temperature Coefficient: Refer to model specifications.

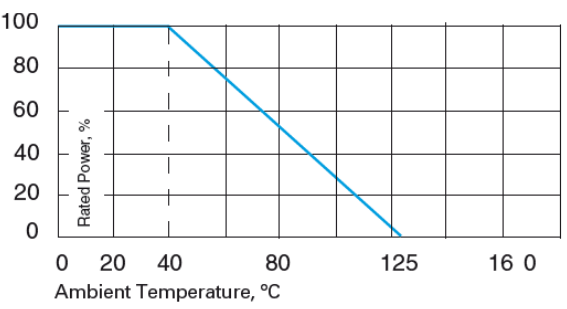

• Max. Operating Temperature: -55°C to +125°C.

• Dielectric Strength: >1,000 V (at 25°C, 75% relative humidity).

• Load Life: 1,000 hours at rated power, with a maximum ΔR/R of 0.15%.

• Moisture Resistance: Maximum ΔR/R of 0.25%.

• Thermal Shock: Maximum ΔR/R of 0.2%.

• Encapsulation: Standard coating is silicone rubber. A 2-component epoxy coating is recommended for oil-immersed and wave soldering applications (details upon inquiry).

• Lead Material: Nickel-plated copper.

• Torque: 1.8 Nm to 2 Nm for M4, 3.8 Nm to 4 Nm for M8.

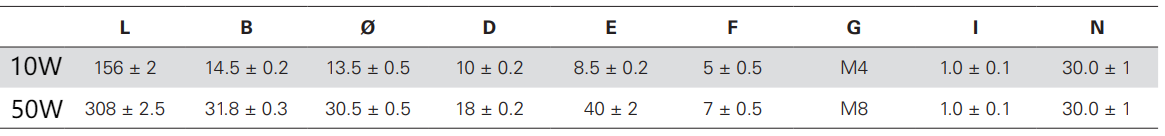

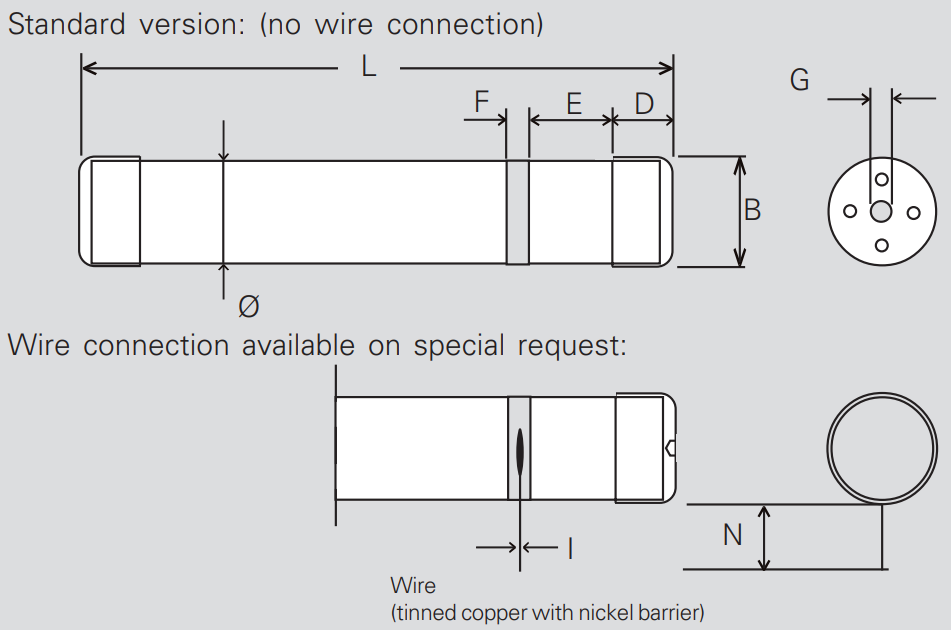

• Connection: Standard version has no lead connections. Pre-welded wire connections are available upon special request.

• Weight: Depends on the model number (details upon inquiry).
