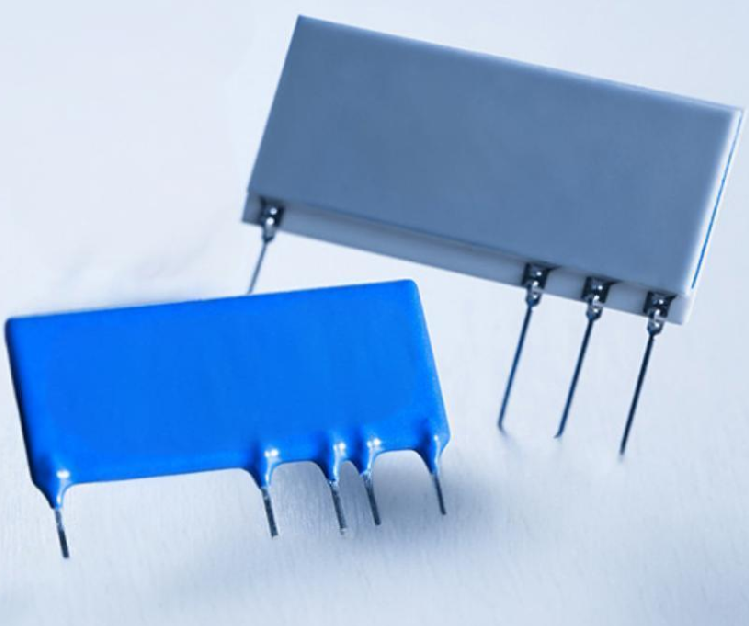

Precision Decade Voltage Dividers Input Voltage Dividers for multimeters and other instruments

I. Product Overview

Voltage dividers for a variety of applications, including digital multimeters, multi-range instruments, and range switching devices. This series of products utilizes proprietary technology. The product can offer special combinations of various ratios, absolute and relative tolerances, and absolute temperature coefficients. For specific requirements, please contact the company.

II. Product Features

• Compact precision resistance network.

• Easy-to-install packaging.

• Non-inductive design.

• Complies with ROHS standards.

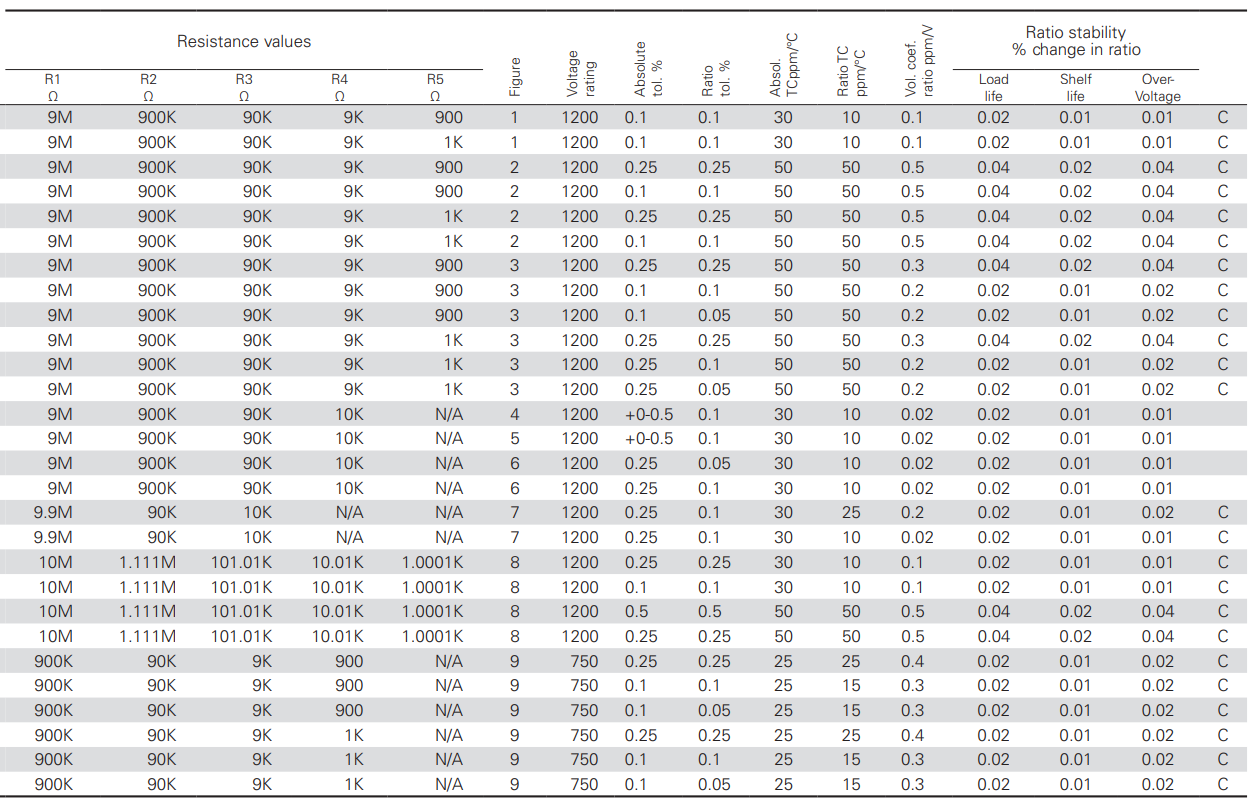

III. Technical Specifications

• Resistance Value: 900 Ω to 10 MΩ (refer to model specifications).

• Ratio Resistance Tolerance: ±0.05% to 0.25%.

• Absolute Resistance Tolerance: ±0.1% to 0.5%.

• Ratio Temperature Coefficient: ±10 ppm/°C to 50 ppm/°C.

• Absolute Temperature Coefficient: ±25 ppm/°C to 50 ppm/°C.

• Voltage Coefficient: Typical value -0.05 ppm/V.

• Storage Temperature: -55°C to +165°C.

• Load Life (Ratio Stability): <0.04%.

• Shelf Life (Ratio Stability): <0.02% (six months).

• High Stability Under Load: <0.2%.

• Number of Decades: 3 to 6.
