Metal Alloy Resistor: High-Precision, Low-TCR Current Sensing Solutions for Harsh Environments

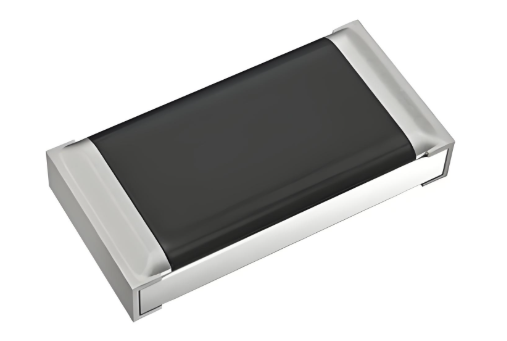

Introduction

Metal alloy resistors are critical components in modern electronic circuits, offering high precision and stability. These resistors are designed to provide accurate current sensing in a variety of applications, from power supplies to automotive systems. Their low temperature coefficient of resistance (TCR) ensures that their resistance values remain stable across a wide temperature range, making them ideal for use in harsh environments. In this article, we will explore the key features and benefits of metal alloy resistors, discuss common challenges, and provide solutions to enhance their performance.


Key Features of Metal Alloy Resistors

Metal alloy resistors are known for their excellent performance characteristics. Below is a table summarizing their key features:

FeatureDescriptionBenefit
Low TCRTemperature Coefficient of Resistance as low as ±1 ppm/°CStable resistance value across temperature variations
High PrecisionTolerance levels as tight as ±0.01%Accurate current sensing and measurement
Low Thermal EMFMinimal thermoelectric voltage generationReduced measurement errors in sensitive circuits
High Power RatingPower ratings up to 10 wattsSuitable for high-power applications
Excellent Long-Term StabilityResistance value drift less than 0.5% over 1000 hoursReliable performance over time

Applications of Metal Alloy Resistors

Metal alloy resistors are widely used in various industries due to their superior characteristics. Some common applications include:

  • Power supplies and battery chargers

  • Automotive electronics, such as engine control units

  • Industrial automation and control systems

  • Medical equipment, including patient monitoring systems

  • Telecommunications infrastructure

Challenge: Thermal EMF in High-Precision Applications

In high-precision applications, thermal electromotive force (EMF) can be a significant issue. Thermal EMF is generated when there is a temperature difference across the resistor, leading to measurement errors. This is particularly problematic in sensitive circuits where accuracy is paramount.

Solution: Minimizing Thermal EMF

To address the challenge of thermal EMF, several strategies can be employed:

  • Material Selection: Choose metal alloy resistors with low thermal EMF characteristics. For example, resistors made from copper-manganese alloy exhibit low thermal EMF.

  • Circuit Design: Implement symmetrical circuit layouts to balance temperature gradients and reduce thermal EMF generation.

  • Heat Sinks: Use heat sinks to dissipate heat effectively and minimize temperature differences across the resistor.

  • Environmental Control: Maintain a stable ambient temperature to reduce temperature variations that can cause thermal EMF.

Comparison with Other Resistor Types

Metal alloy resistors offer distinct advantages over other resistor types. The table below compares metal alloy resistors with carbon film and wire-wound resistors:

ParameterMetal Alloy ResistorCarbon Film ResistorWire-Wound Resistor
TCR (ppm/°C)±1 to ±50±200 to ±500±20 to ±100
Tolerance (%)±0.01 to ±1±2 to ±10±0.1 to ±1
Power Rating (W)0.1 to 100.1 to 21 to 100
Stability (%, 1000 hrs)0.1 to 0.51 to 50.2 to 1
CostMediumLowHigh

Conclusion

Metal alloy resistors are indispensable components in modern electronics, providing high-precision current sensing solutions with excellent stability and low TCR. Their ability to operate reliably in harsh environments makes them a preferred choice for various applications. By understanding the challenges such as thermal EMF and implementing appropriate solutions, engineers can fully leverage the benefits of metal alloy resistors in their designs. Whether it's for power supplies, automotive systems, or industrial equipment, metal alloy resistors offer the performance and reliability needed to meet the demands of today's technology.
