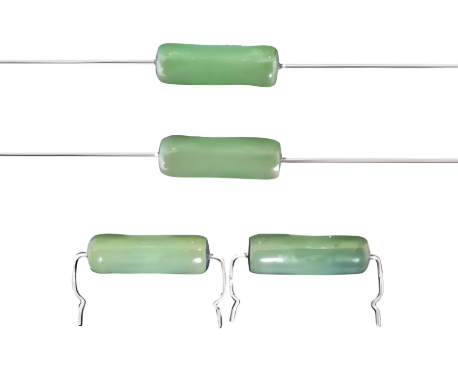

RX22 Vitreous enameled wire - wound resistors

Features

Full welded structure
High load
Used in harsh environment
Excellent stability, high reliability

Applications

Widely used in DC or low - frequency AC circuit, especially in harsh condition.

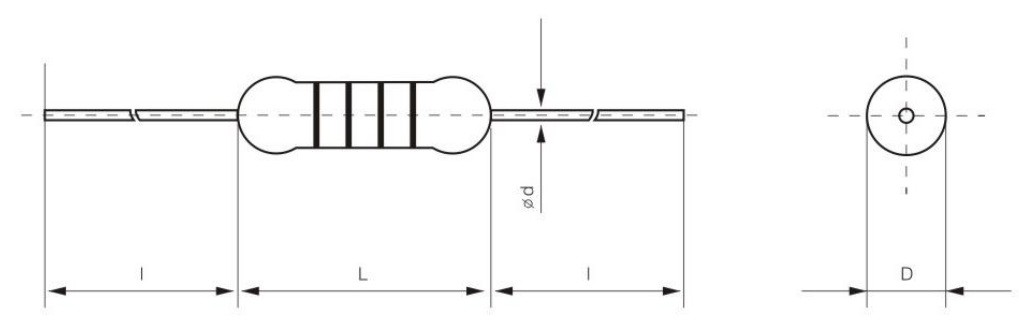

Dimensions(mm)

Type	Lmax	Dmax	L ± 3	ϕd ± 0.05
RX22 - 2W	13.0	5.5	30.0	0.8
RX22 - 3W	16.0	6.5	30.0	0.8
RX22 - 4W	19.0	7.5	30.0	0.8
RX22 - 6W	25.0	9.0	30.0	0.8
RX22 - 8W	32.0	9.5	30.0	1.0
RX22 - 10W	36.0	9.5	30.0	1.0
RX22 - 12W	46.0	9.5	30.0	1.0

Technical Specifications

Type	Rated Power	Resistance Range	Tolerance	Temperature Coefficient (10⁻⁶/K)
RX22 - 2W	2W	1 ~ 300	± 5% ± 10%	≥ 10Ω: TCR≤ ± 250 5Ω ≤ R < 10Ω: TCR≤ ± 500 < 5Ω
RX22 - 3W	3W	1 ~ 1K
RX22 - 4W	4W	0.5 ~ 2K
RX22 - 6W	6W	0.1 ~ 5K
RX22 - 8W	8W	0.1 ~ 15K
RX22 - 10W	10W	0.1 ~ 22K
RX22 - 12W	12W	0.1 ~ 39K

Performance

Test Item	Specifications	Test Methods
Short time overload	ΔR≤ ±(1%R + 0.05Ω)	10×Pₙ, 5S
Leaching	ΔR≤ ±(1%R + 0.05Ω)	350 ± 10°C 3.5 ± 1S
Vibration	ΔR≤ ±(1%R + 0.05Ω)	10Hz ~ 500Hz 98m/s² 6h
Bump	ΔR≤ ±(1%R + 0.05Ω)	25g 1000 times
Rapid change of temperature	ΔR≤ ±(1%R + 0.05Ω)	-55°C/315°C, 30min, 3 times
Endurance at 70°C	ΔR≤ ±(5%R + 0.1Ω)	70°C Pₙ 1000h
Surface temperature rise	≤275°C	-
