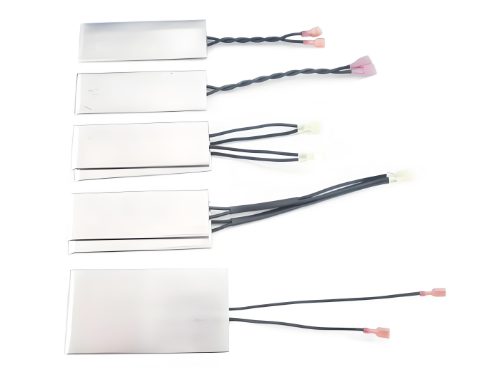

RXGP stainless steel shell encased wire - wound

Features

Small size, easily mounted
Excellent high - temperature load performance
High voltage available, good power load performance
Use excellent mica segment as framework, 304 stainless steel shell covered whole resistor element
Imported material sealed, excellent insulation

Applications

Mostly used in all kinds of frequency inverter, power supply equipment, experiment circuit etc.
Safety and reliability in high temperature and humidity.

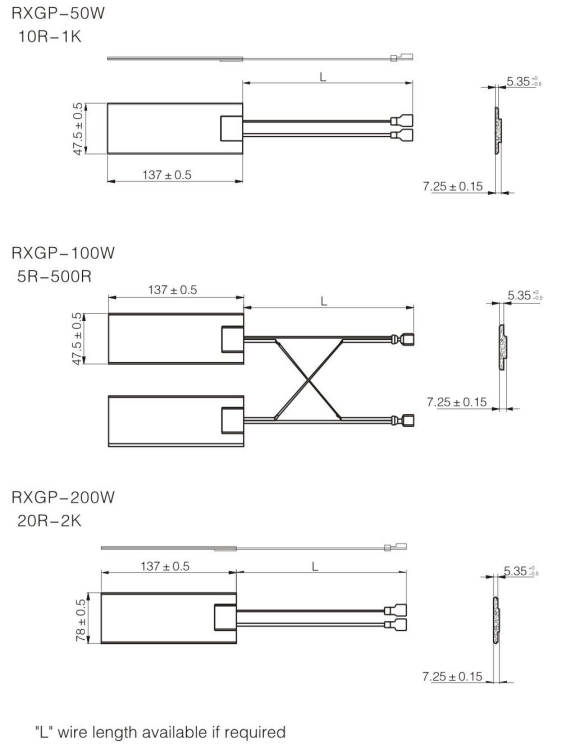

Technical Specifications

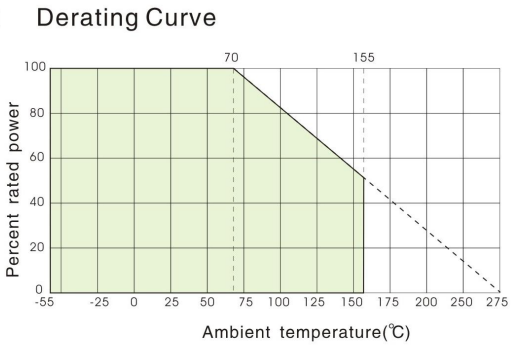

Type	Rated Power (W)	TCR (10⁻⁶/K)	Resistance Range J(±5%)	Rating Ambient Temp	Operating Temp Range
RXGP - 50W	50	±250	10R - 1K	70°C	- 55°C/+155°C
RXGP - 100W	100		5R - 500R
RXGP - 200W	200		20R - 2K

Please contact us for special requirement about resistance, size and specification.

Performance

Test Item	Specifications	Test Methods
Short time overload	△R≤ ±(1%R + 0.05Ω)	10P<sub>R</sub>, 5S
Leaching	△R≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Endurance	△R≤ ±(5%R + 0.1Ω)	15°C - 35°C, P<sub>R</sub>, 1000h
Vibration	△R≤ ±(5%R + 0.1Ω)	10Hz - 50Hz - 10Hz, 2h
Surface temperature rise	≤250°C	P<sub>R</sub>
Hipot	No electric - breakdown or arcover	3000VAC, 2mA, 1min
