High Precision Metal Film Resistors: Optimal Performance for Analog and RF Circuits


In the complex and demanding realm of electronic circuits, high precision metal film resistors have emerged as a linchpin, particularly when it comes to analog and RF (Radio Frequency) circuits, where their unique capabilities unlock optimal performance.


I. Analog Circuits: The Epitome of Precision Signal Handling


  1. Accurate Signal Conditioning

    • In the chain of analog signal acquisition and processing, these resistors offer extraordinarily precise resistance values. For instance, within audio amplifier circuits, they are employed to configure the gain resistor networks. Thanks to their nominal resistance deviation range as narrow as ±0.01% to ±1.0%, audio signals can be amplified with each frequency component scaled precisely during the amplification process. This precludes signal distortion caused by resistance inaccuracies, faithfully reproducing sound details, be it the faint ambient sounds or the powerful crescendos of music, with impeccable fidelity.

    • In sensor signal conditioning circuits, such as bridge sensor circuits used for temperature and pressure measurements, the stable and exact resistance values guarantee the accuracy of converting the sensor's output signals into standard electrical signals (e.g., voltage). This allows subsequent instruments or control systems to obtain reliable raw data with minimal errors. It's akin to an ultra-precise scale that measures the "weight" of electrical signals corresponding to physical quantity changes without the slightest deviation.

  2. Low Noise Attributes

    • Analog circuits are highly susceptible to noise, and here, the inherent structural advantages of metal film resistors shine. The uniform and dense metal film minimizes the likelihood of electrons generating thermal noise due to erratic motion, resulting in a low thermal noise spectral density. Additionally, their remarkable temperature stability, with a temperature coefficient as low as ±2 PPM/°C to ±50 PPM/°C (within the test temperature range of 25 °C to 85 °C), means that any increase in noise due to temperature fluctuations is negligible. In scenarios like the front-end amplifier circuits of precision oscilloscopes where weak signals are processed, these resistors act as sentinels for clean signal presentation, preventing minute electrical signals from being drowned out by noise and ensuring clear waveforms and accurate measurements.


II. RF Circuits: The Cornerstone of High-Frequency Stability


  1. High-Frequency Robustness

    • In the RF frequency domain, where signals can reach frequencies of several megahertz or even gigahertz, the specialized manufacturing processes of high precision metal film resistors, such as the advanced vacuum deposition techniques that yield high-quality metal films with intimate substrate bonding, result in minuscule parasitic capacitances and inductances. Take the output matching circuit of a mobile phone base station's RF power amplifier as an example. Under the influence of high-frequency alternating current, the resistor can still maintain its designed resistance value steadily, precisely controlling signal energy transmission and reflection. This ensures efficient radiation of the base station's signals, optimizing communication range and quality, and averting signal "turbulence" caused by resistance performance fluctuations, guaranteeing that mobile phones and other terminals receive strong and stable signals.

  2. Wide Temperature Adaptability

    • RF circuits often operate in complex environments. Outdoor communication base stations, for instance, endure seasonal temperature differences and heat generated by the equipment itself. Metal film resistors, with an operating temperature range spanning from -55 °C to +175 °C, remain unfazed by extreme heat or cold. In satellite communication RF front-end circuits, where space presents extreme thermal cycling, they stand firm, with constant resistance values, maintaining the stability of the circuit's resonant frequency and ensuring seamless signal transmission and reception between satellites and the ground, undeterred by temperature "disruptions."


III. Conclusion


High precision metal film resistors, with their multifaceted excellence in analog and RF circuits, spanning precision, noise control, high-frequency, and temperature adaptability, serve as a reliable foundation for circuit designers. Whether crafting high-fidelity audio systems, precision medical monitoring devices, or building global communication networks, they are an indispensable key component, continuously propelling electronic technology towards higher precision and more stable performance.


Email us

NEW
You might also be interested in the following content:
Understanding Metal Oxide Film Resistors: Construction Principles, Working Mechanisms, Key Specifications and Diverse Applications
Understanding Metal Oxide Film Resistors: Construction Principles, Working Mechanisms, Key Specifications and Diverse Applications

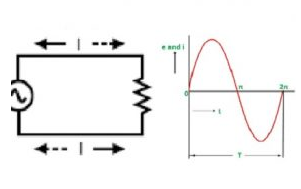

Unraveling Resistors in AC Circuits: Operational Principles and Illustrative Examples
