600W Power Resistor: Comprehensive Technical Specifications & Applications Explained

600W Power Resistor: Comprehensive Technical Specifications & Applications Explained

Introduction

Power resistors up to 600W play pivotal roles in various industrial sectors like electronics and energy. They dissipate vast quantities of energy in the form of heat. In this article, we'll delve into the comprehensive technical specifications of 600W power resistors and their practical applications in diverse fields.

Technical Specifications of 600W Power Resistor

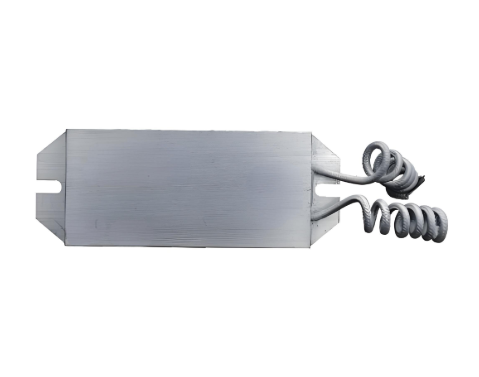

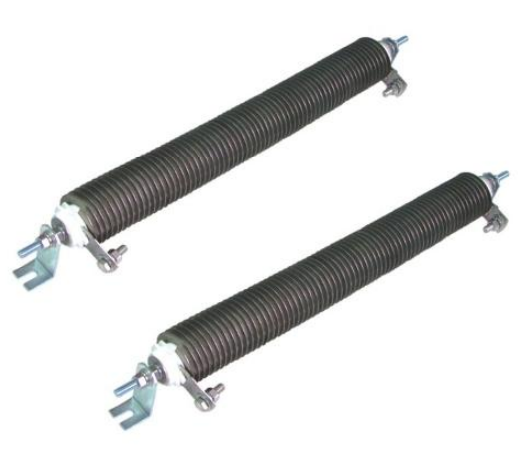

600W power resistors, such as the wire-wound type and metal-clad type, are characterized by their robust construction and high power handling capability. Below are some key technical parameters:

ParameterTypical ValueDescription
Rated Power600WMaximum power the resistor can dissipate under specified conditions
Resistance Range0.1Ω to 100kΩWide range of resistance values available for different applications
Operating Temperature-55°C to +250°CTemperature range within which the resistor can operate safely
Voltage RatingUp to 2000VMaximum voltage the resistor can withstand without breakdown
Temperature Coefficient50 ppm/°CChange in resistance value per degree Celsius change in temperature
Thermal Resistance0.1°C/WResistance to heat flow from the resistor to the surrounding environment
InductanceLow (non-inductive designs available)Measures the resistor's ability to store energy in a magnetic field
Pulse HandlingUp to 10kW peak powerAbility to handle short-duration high-power pulses

Applications of 600W Power Resistor

These high-power resistors are utilized across numerous industries due to their ability to handle substantial power loads. Here are some common applications:

  • Automotive electronics for motor control and braking systems

  • Industrial power supplies and voltage regulation

  • Renewable energy systems such as wind turbines and solar inverters

  • Medical imaging equipment and X-ray machines

  • Telecommunication infrastructure for power management

  • Aviation and aerospace systems for critical power dissipation

  • Manufacturing equipment for process control

  • Dynamic braking systems in motor drives

  • Energy dissipation in uninterruptible power supplies (UPS)

  • Testing and measurement equipment

Common Issue with 600W Power Resistors & Solution

Problem: Overheating and potential failure of 600W power resistors in high-duty-cycle applications.

Solution: Implement effective heat dissipation mechanisms. This can include:

  • Installing the resistor on a large heat sink with adequate thermal conductivity

  • Utilizing forced air cooling with fans or blowers

  • Implementing liquid cooling systems for extremely high heat loads

  • Optimizing the resistor's mounting orientation for maximum heat dissipation

  • Selecting resistors with lower thermal resistance and higher temperature ratings

  • Employing parallel resistor configurations to distribute the heat load

By addressing the heat dissipation issue, the reliability and longevity of 600W power resistors can be significantly improved in demanding applications.

Conclusion

600W power resistors are indispensable components in numerous high-power applications across various industries. Their technical specifications, including rated power, resistance range, operating temperature, and voltage rating, make them suitable for handling substantial power loads. By understanding their comprehensive technical specifications and implementing proper heat management solutions, engineers can effectively utilize these resistors in their designs to ensure reliable operation and extended service life.
